Through-Wall Air Source Heat Pumps

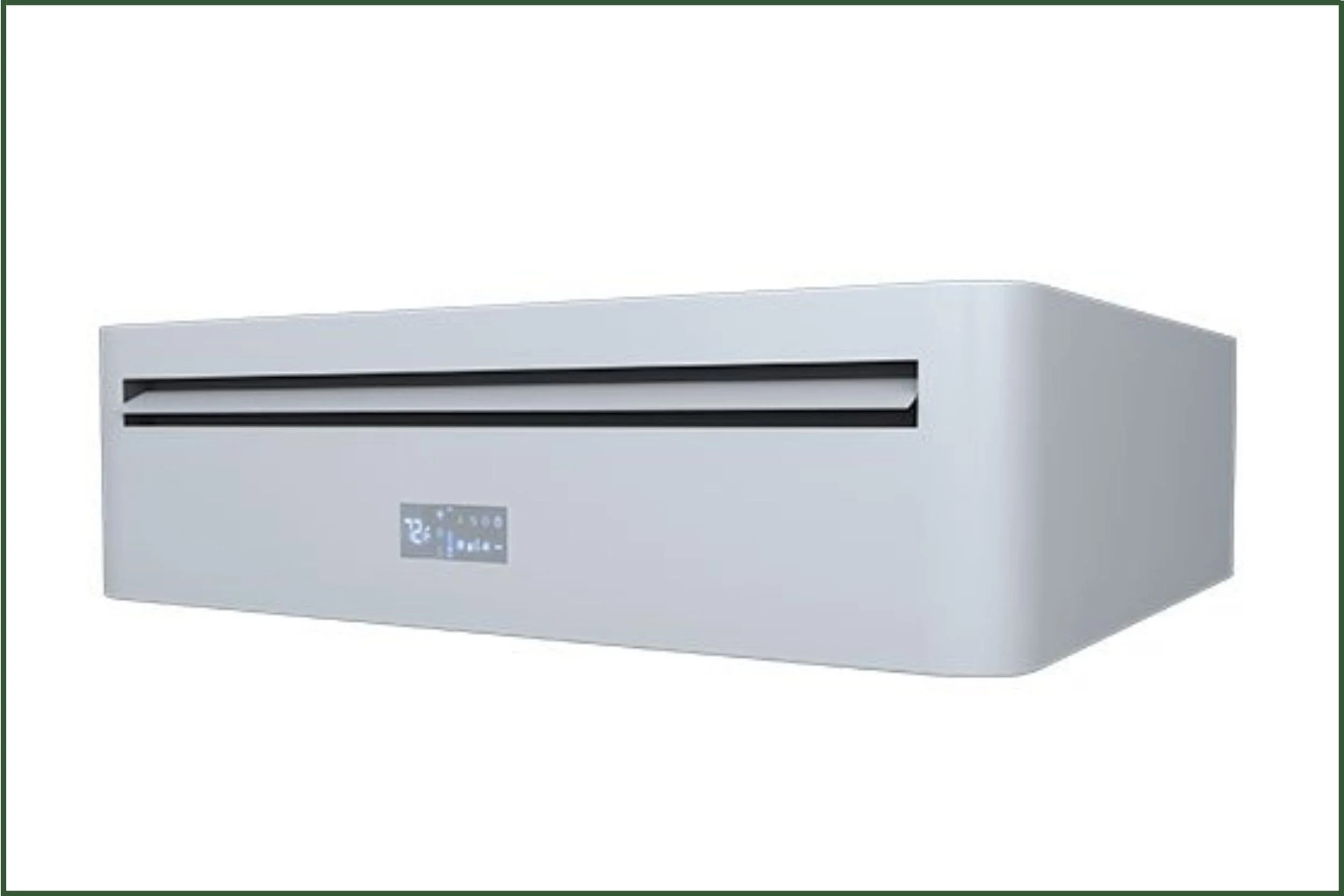

WALL MOUNTED

AIO wall-mounted units are slim and sleek. The wall-mounted unit can be mounted high or low, making installation quick and simple. An electronically controlled louvre with an auto-swing function distributes airflow comfortably and uniformly. AIO wall-mounted units are available with an optional ERV add-on component. A sidewall adapter enables the unit to be installed perpendicular to an outside wall.

  • Cooling
    RANGE | Btu/h | 3,400 - 15,500
    NOMINAL | Btu/h | 8,500

    Heating 47° F
    RANGE | Btu/h | 3,500 - 10,100
    NOMINAL | Btu/h | 7,900

    Heating 13° F
    RANGE | Btu/h | 3,000 - 5,200
    NOMINAL | Btu/h | 4,600

    Heating 5° F
    RANGE | Btu/h | 2,800 - 4,700
    NOMINAL | Btu/h | 4,300

  • Dimensions
    WITH ERV | Net | 39.7” W x 21.9” H x 11” D
    WITH ERV | Gross | 39.7” W x 21.9” H x 15” D
    W/O ERV | Net | 39.7” W x 21.9” H x 6.5” D
    W/O ERV | Gross | 44” W x 26” H x 15” D

    Weight
    WITH ERV | Net | 135 lb
    WITH ERV | Gross | 140 lb
    W/O ERV | Net | 100 lb
    W/O ERV | Gross | 105 lb

    Cabinet
    FINISH | RAL 9003 signal white
    MATERIAL | Steel

WALL
MOUNTED PRO

AIO Wall Mounted Pro units are designed to heat and cool spaces with higher btu requirements. They have an extremely powerful exhaust fan with 0.45″ WC enabling flexibility in venting and higher efficiency with better performance than the standard Wall Mounted unit. The wall-mounted unit can be mounted high or low, making installation quick and simple. AIO wall-mounted units are available with an optional ERV add-on component. A sidewall adapter enables the unit to be installed perpendicular to an outside wall.

  • Cooling
    RANGE | Btu/h | 3,400 - 15,500
    NOMINAL | Btu/h | 8,500

    Heating 47° F
    RANGE | Btu/h | 4,300 - 15,700
    NOMINAL | Btu/h | 8,600

    Heating 13° F
    RANGE | Btu/h | 3,200 -7,300
    NOMINAL | Btu/h | 6,900

    Heating 5° F
    RANGE | Btu/h | 2,800 - 6,800
    NOMINAL | Btu/h | 4,300

  • Dimensions
    WITH ERV | Net | 39.7” W x 21.9” H x 11” D
    WITH ERV | Gross | 39.7” W x 21.9” H x 15” D
    W/O ERV | Net | 39.7” W x 21.9” H x 6.5” + 2″ fan D
    W/O ERV | Gross | 44” W x 26” H x 15” D

    Weight
    WITH ERV | Net | 135 lb
    WITH ERV | Gross | 140 lb
    W/O ERV | Net | 105 lb

    Cabinet
    FINISH | RAL 9003 signal white
    MATERIAL | Steel

VERTICAL STACK

AIO vertical stack ducted unit is the ideal multi-room solution when a ceiling-mounted unit is not desired or feasible. The compact 12-inch by 25-inch compact footprint uses minimal floor space. This unit is perfect anywhere ducting is required with up to 0.4-inch water gauge external static pressure capabilities. The unit can be installed on a corridor wall, enabling the unit to be fully serviced without entering the apartment or hotel room. A bathroom exhaust can connect to the dedicated stale air exhaust. The vertical stack ducted unit is available with or without the integrated ERV and can be vented directly outside or through ductwork.

  • Cooling 95°
    MIN - MAX | Btu/h | 3,900 - 15,100
    EFFICIENCY | Btu/h | 11.66 /15.4

    Heating 47° F
    MIN - MAX | Btu/h | 3,900 - 14,900
    EFFICIENCY | COP | 3.52

    Heating 13° F
    MIN - MAX | Btu/h | 3,600 -6,900
    EFFICIENCY | COP | 2.03

    Heating 5° F
    RANGE | Btu/h | 2,700 - 6,700
    NOMINAL | Btu/h | 6,400

  • Sound
    INDOOR | dB(A) | 27/35/46
    OUTDOOR | 38/47/56
    INFILTRATION | STC | 40

    Airflow
    INDOOR | CFM | 159/220/290
    OUTDOOR | 250-530

    Dims
    W x D x H I | In | 25 x 11.8 x 83.3

CEILING DUCTED

AIO Ceiling ducted can be discreetly installed above
a ceiling and is ideal for single or multi-room applications. The return can be from the sides or the bottom for maximum flexibility. With external static pressure capabilities of up to 0.4 in, wg., this unit can be used where ducting is required. Use with any interior grille and louver to provide additional design flexibility. A bathroom exhaust can connect to the dedicated stale air exhaust. Ceiling ducted units are available with or without the integrated ERV.

  • Cooling
    RANGE | Btu/h | 3,400 - 14,000
    NOMINAL | Btu/h | 8,300

    Heating 47° F
    RANGE | Btu/h | 4,200 - 15,000
    NOMINAL | Btu/h | 8,200

    Heating 13° F
    RANGE | Btu/h | 3,200 -7,000
    NOMINAL | Btu/h | 6,300

    Heating 5° F
    RANGE | Btu/h | 2,700 - 6,700
    NOMINAL | Btu/h | 5,700

  • Dimensions
    WITH ERV | Net | 38.3” W x 41.7” D x 11.3” H
    WITH ERV | Gross | 48” L x 48” W x 18” H
    W/O ERV | Net | 170 lb
    W/O ERV | Gross | 190 lb

    Weight
    WITH ERV | Net | 135 lb
    WITH ERV | Gross | 140 lb
    W/O ERV | Net | 105 lb

    Cabinet
    FINISH | RAL 9003 signal white
    MATERIAL | Steel

CEILING SUSPENDED

AIO ceiling suspended unit is hung from the ceiling unobtrusively. These units are ideal for retrofit applications where it is desirable to have the unit “out of reach.” Ceiling-suspended units are suitable for dormitories, rental apartments or hotels. Ceiling-suspended units are available with or without the integrated ERV and can be vented directly outside
or through ductwork.

  • Cooling
    RANGE | Btu/h | 3,400 - 14,000
    NOMINAL | Btu/h | 8,300

    Heating 47° F
    RANGE | Btu/h | 4,200 - 15,000
    NOMINAL | Btu/h | 8,200

    Heating 13° F
    RANGE | Btu/h | 3,200 -7,000
    NOMINAL | Btu/h | 6,300

    Heating 5° F
    RANGE | Btu/h | 2,700 - 6,700
    NOMINAL | Btu/h | 5,700

  • Dimensions
    NET | 39.7” W x 21.9” H x 11” D
    GROSS | 39.7” W x 21.9” H x 15” D

    Weight
    NET | 135 lb
    GROSS | 140 lb

    Cabinet
    FINISH | RAL 9003 signal white
    MATERIAL | Steel

ERV KIT

The AIO wall mounted provides power for the ECM fans and electronics,so no additional power source is required. The ERV module works for both the standard and pro versions and adds 5″ to the total depth. Filter changes are easily done from the upper and lower access panel.

The AIO wall mounted ERV add-on allows for fresh air and heat recovery to Ephoca units. No additional exterior vents are required, as the ERV module fits behind the units and uses the same intake and exhaust vents. Treated and MERV 13 filtered fresh air is introduced into the room via the supply louver.

  • Fresh Air
    CFM - Wall Mounted Pro | 15 - 40
    CFM - Vertical Stack , Ceiling Suspended, Ceiling Ducted | 40- 80

    Filter
    Efficiency | MERV13

    Winter
    Sensible % | 87 -83
    Latent % | 73 - 60

    Summer
    Sensible % | 71 - 68
    Latent % | 56 - 51

Adapters

Duo Sidewall Adapter
Ideal for applications where it’s not feasible or practical to mount AIO wall units on an exterior wall, venting directly out.

VIEW INSTALLATION VIDEO HERE

High Window Adapter
Enables the installation of Wall Mounted
Pro units on the wall above the window without any construction.

VIEW INSTALLATION VIDEO HERE

Window Assembly Adapter
Enables AIO Wall Mounted Pro units to vent through a window/louver assembly
with a slim louver.

VIEW INSTALLATION VIDEO HERE

Floor Louver Adapter
Enables AIO Wall Mounted Pro to vent
through a sleek linear louver below the unit.
Designed to fit inside a standard wall assembly.

VIEW INSTALLATION VIDEO HERE

Windowsill Adapter
Enables AIO Wall Mounted Pro units to be mounted on the wall below the window without any construction.

VIEW INSTALLATION VIDEO HERE

PTAC Adapter
Enables the Wall Mounted Pro unit to be mounted to an existing PTAC sleeve. Plate covers the entire PTAC sleeve opening.

VIEW INSTALLATION VIDEO HERE

Sidewall Adapter
Ideal for applications where it’s not feasible or practical to mount AIO wall units on an exterior wall, venting directly out.

VIEW INSTALLATION VIDEO HERE

Controllers

WIFI APP

The Ephoca app for Android, iOS, and PC devices enables full functionality of all modes, fan speed, temperature setting, and a comprehensive seven-day programmable timer when connected to the Internet. The app also allows groups to control multiple units as a single unit, simplifying operations. Multiple users can be connected to each AIO unit.

KEY FEATURES

  • Easy and intuitive use

  • Secure

    • 7-day program with multiple independent schedules per day

    • Fan Controls Include: Low, Medium, High and Auto

    • Modes include: Cool, Heat, Dehumidify and Fan Only

    • Fresh air on/off

    • Fahrenheit or Celsius in single degree increments

    • Louver contro

    • Sleep mode

    Control units individual or as a group

    View all units at one time

    • Compatible with Android, iOS and PC

    • Internet connection required for timer and remote control

ADVANCED
TOUCHSCREEN
CONTROLLER

KEY FEATURES

  • Full-color TFT Touch Screen

  • 4.3” TFT, with 480 x 272 pixel resolution

The Wall Mounted, full-color, advanced touchscreen controller is the best choice for the system’s easiest and most comprehensive control. The advanced touchscreen controller can be mounted right next to the light switch and is about the size of a standard light switch plate. Extensive programming offers multiple schedules for each day. Commands are intuitive and straightforward.

    • 7-day program with multiple schedules per day

    • Fan Controls Include: Low, Medium, High and Auto

    • Louver control

    • Fahrenheit or Celsius in single degree increments

    • Modes include: Cool, Heat, Dehumidify and Fan Only

    • Fresh air on/off

    • Sleep mode

    • Material: White Matte plastic frame

    • Weight: 0.5 lb

    • Dimensions: W: 3.12” x H: 4.76” x D: 0.5” (0.75”D inside j- box)

    • Connection: Shielded 4 wire conductor 20 AWG wire with a maximum 30’ run

    • Mounting: Mounts to a single gang, standard depth junction box

    • Included parts: Touchscreen Controller and Interface to AIO

    • 3-year limited warranty

Note: This controller requires a gateway board (included) which must be field installed and connected inside the AIO by an electrician or technician and takes approximately 15 minutes to install.

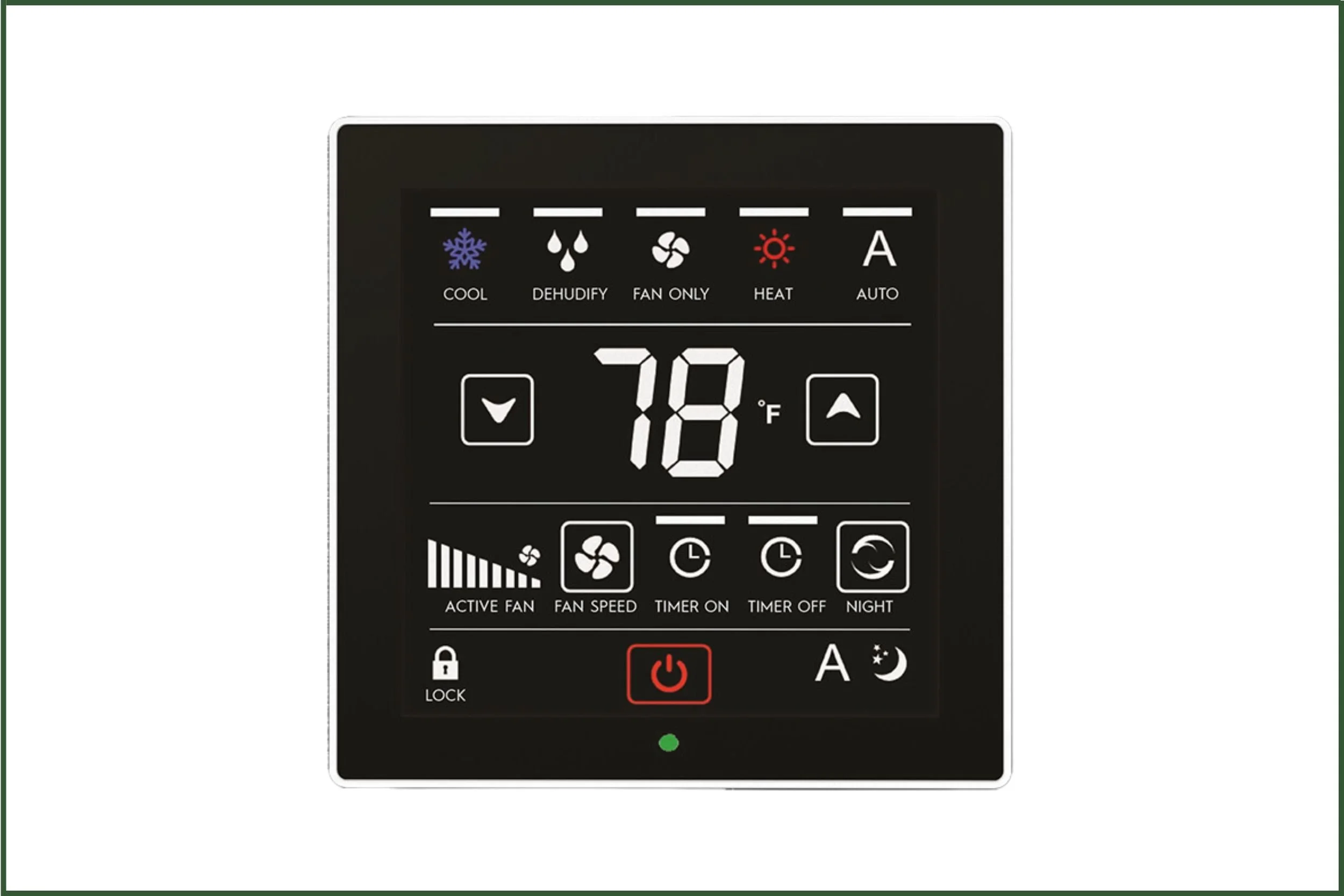

BASIC WALL
CONTROLLER

KEY FEATURES

  • Surface wall mounted

  • Sleek glass touch controller

  • Always-on back-lit LED dims after 15 seconds of inactivity

The Wall Mounted basic touch controller is simple and easy to use, with icons and text for each button. The sleek design and low profile easily blend into any decor. It features a simple on/off timer. The LED display dims after 15 seconds, making it ideal for any room, especially a bedroom.

    • Modes include: Cool, Heat,

    • Dehumidify and Fan Only

    • Fan controls Include: Low, Medium, High and Auto

    • Fresh air on/off

    • Timer for single on and single off

    • Keypad lock

    • Fahrenheit or Celsius in single-degree increments

    • Louver control

    • Sleep mode

    • Mounting: Surface-mounted

    • Materials: White Matte plastic frame, glass front

    • Dimensions: W: 3.41” x H: 3.35” x D: 0.31”

    • Weight: 0.5 lb

    • Connection: Shielded 4 conductor 20 AWG wire with a maximum 30’ run

    • Included parts: Basic Touch Controller and Interface to AIO

    • 3-year limited warranty

Note: This controller requires a gateway board (included) which must be field installed and connected inside the
AIO by an electrician or technician and takes approximately 15 minutes to install.

ONBOARD TOUCH
CONTROLLER

KEY FEATURES

  • Touch controller

  • Always-on display

  • Option to dim when room gets dark

The integrated touch controller offers
easy-to-use controls of mode, fan speed, louver swing, setpoint, fresh air, and a dimmable screen for nighttime on all AIO units. The controller is also used to program the unit for special settings.

    • Fan Controls Include: Low, Medium, High and Auto

    • Modes include: Cool, Heat, Dehumidify and Fan Only

    • Fresh air on/off

    • Fahrenheit or Celsius in single degree increments

    • Louver control

    • Sleep mode

    • Used for programing special features

    • Plastic protective cover

    • 10-year limited warranty

THIRD-PARTY
GATEWAY

KEY FEATURES

  • Enables all the benefits of a smart thermostat such as Nest™, Ecobee™ etc for timers, controls, etc.

  • Included 24V power supply

The third-party gateway offers the ability to control AIO with any standard or smart thermostat. AIO’s BLDC inverter compressor can’t be controlled by a regular or smart thermostat that sends an on-off signal. The TPG sends signals from the connected standard or smart thermostat to AIO’s processor, controlling the inverter compressor.

    • On/off

    • Set-point

    • Modes Including: Cool, Heat, Dehumidify and Fan Only

    • Fan Speed including: Low, Medium, High and Auto

    • Connections to thermostats include: R, C, Y, W, G1, G2, G3 and 24V power terminals

    • Dimensions: W: 2.65’ x L: 3.54” x D: 1.5”

    • Weight: 0.5 lb

    • Gateway mounts inside AIO.

    • Included parts: Third-party gateway and Interface to AIO

    • 3-year limited warranty

Note: This controller requires a gateway board (included) which must be field installed and connected inside the AIO by an electrician or technician and takes approximately 15 minutes to install.

Louvers

FLANGE LOUVER

  • Concealed louver assembly

  • Surface mounted louver assembly

Designed for use with the AIO series heat pumps, the standard flange linear louver assembly offers clean architectural lines, excellent airflow performance.

  • Wall Mounted
    Supply (Sq.ft) = 0.21
    Exhaust (Sq.ft) = 0.21

    Wall mounted Pro
    Supply (Sq.ft) = 0.34
    Exhaust (Sq.ft) = 0.34

    Ceiling concealed
    Supply (Sq.ft) = 0.34
    Exhaust (Sq.ft) = 0.34

    Ceiling suspended
    Supply (Sq.ft) = 0.34
    Exhaust (Sq.ft) = 0.34

    Vertical stack
    Supply (Sq.ft) = 0.34
    Exhaust (Sq.ft) = 0.34

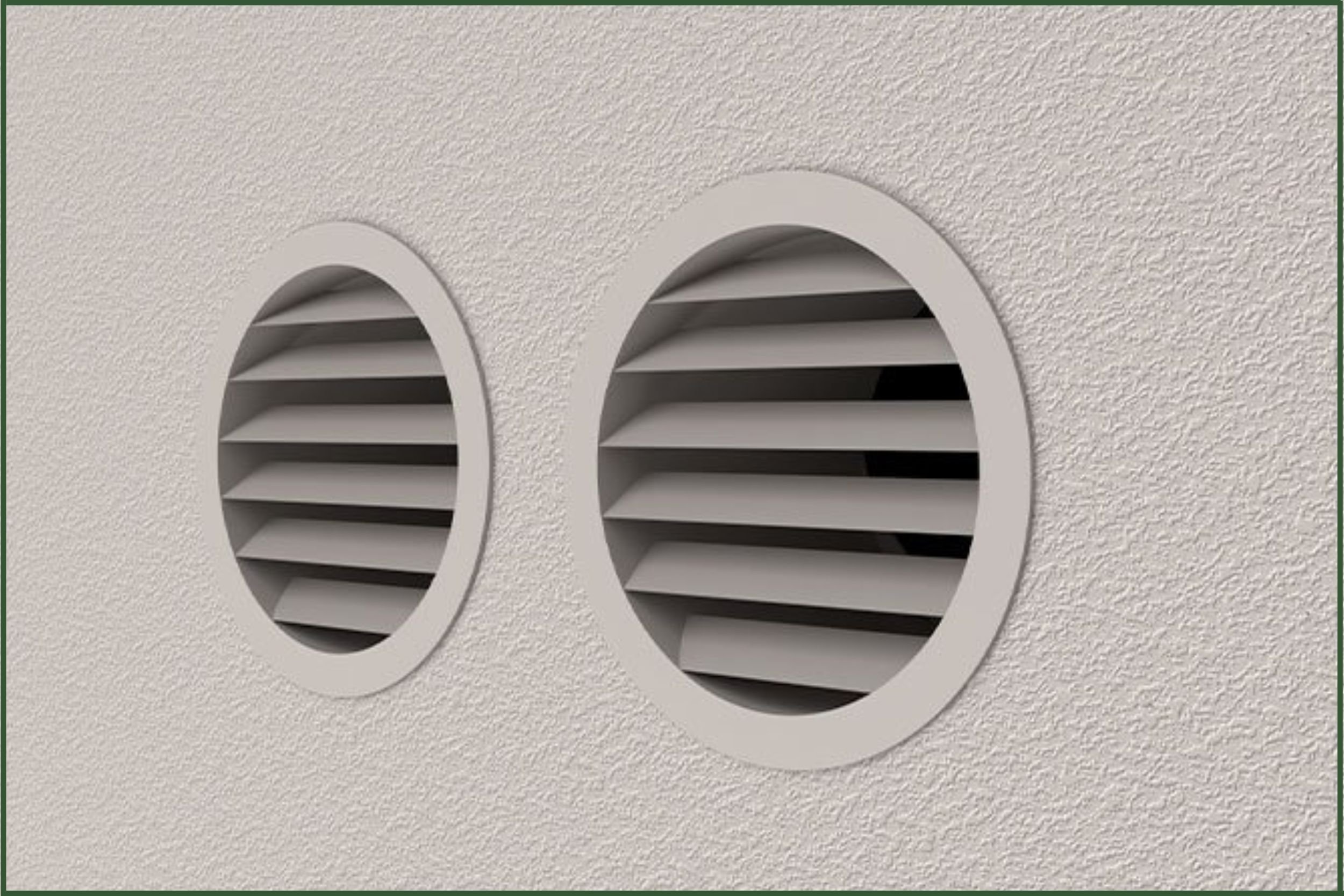

ROUND VENTS

Designed for use with the AIO series heat pumps, the RLA series assembly offers easy installation, clean architectural lines, and excellent airflow performance.

RLA is serious about keeping water out with unique features that provide failsafe protections for water intrusion, ensuring that no matter the circumstance, no water will enter the wall assembly or inside the room. The three-part assembly consists of an outer sleeve, an inner sleeve, and a cast louver.
