Why Choose Ceiling Ducted
AIO Ceiling Ducted can be discreetly installed above a ceiling and is ideal for single or multi-room applications. The return can be from the sides or the bottom for maximum flexibility. With up to 0.6″ WC external static pressure, this unit can be used where ducting is required.
Use with any interior grille and louver to provide additional design flexibility. A bathroom exhaust can connect to the dedicated stale air exhaust. Ceiling Ducted units are available with or without the integrated ERV.
Installation Made Easy
Our installation process is quick and simple with minimal disruption, ensuring precise setup and reliable performance.

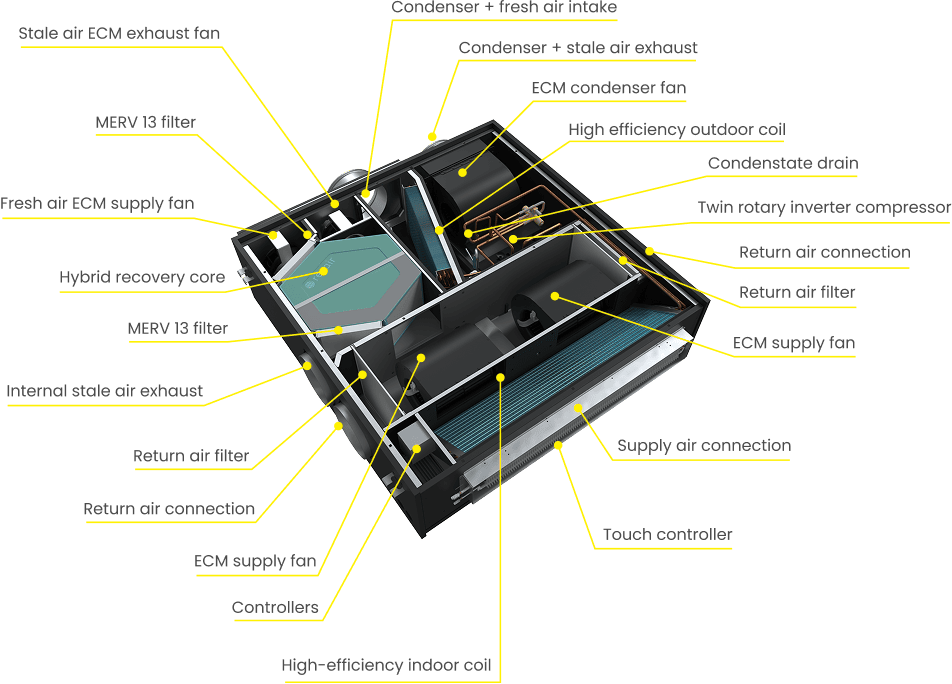

What’s Inside
Discover the advanced components engineered to deliver reliable performance, energy efficiency, and consistent comfort in every installation.
Technical Specifications
Explore key technical specifications for performance and efficiency. Clear details for quick system understanding.

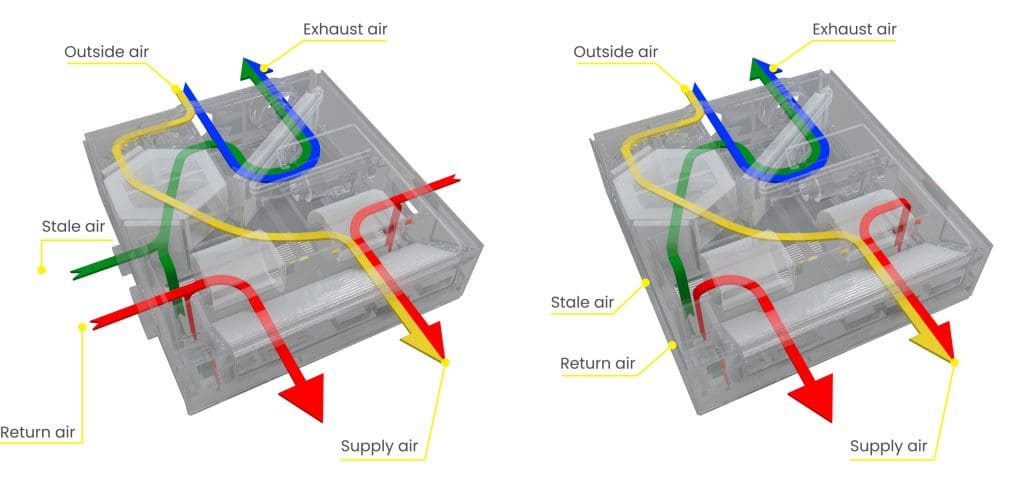

Advanced Airflow System
AIO Ceiling Ducted is flexible in many ways. It can be fully ducted or used with minimal or no ducting. This flexibility enables AIO Ceiling Ducted to be placed anywhere in a dwelling without restrictions.
Supply Air
The rectangular 4” x 29” supply air connection is ideal for a supply grille or ducting, with up to 0.6” external static pressure (combined between return and supply).
Stale Air Exhaust
The five-inch round stale air exhaust connection can be used as part of a plenum return without any ducting or can be ducted to a bathroom or multiple locations with up to 0.5” WC external static pressure. If configuring AIO Ceiling Ducted with a bottom return, the stale air can also be pulled from the bottom return.
Bottom Return Air
The bottom 8.7” x 22” return is designed to be used with a ceiling-mounted return grille or an access panel with an integrated return grille.
Side Return Air
The left and right side 6” round connection can be ducted to one or more rooms with up to 0.6” external static pressure (combined between return and supply). It can also be left open as a side plenum return. Each connection is fully independent with two ECM fans, each with auto ESP, each connection is fully independent. Duct both, leave both open or duct one, and leave one open to a plenum.
Outside Air Intake
The single 8” round outside air intake connection provides air for the condenser portion and fresh air for the inside. This can be ducted with up 0.7” WC external static pressure (combined between intake and exhaust).
Outside Air Exhaust
The single 8” round outside air exhaust connection is for the condenser portion and the stale air exhaust. This can be ducted with up 0.7” WC external static pressure (combined between intake and exhaust).
Proven. Certified.
Built for Canadian Climates.
Innova AIO heat pumps combine independently tested performance, recognized certifications, and years of proven operation in demanding Canadian climates.
Choose equipment that has been tested, certified, and proven through harsh Canadian winters.
