Why Choose Wall Mounted

AIO Wall Mounted Pro units are slim and sleek. The Wall Mounted Pro can be mounted high or low with a factory-supplied bracket, making installation quick and simple. Special adapters enable the unit to be installed perpendicular to an outside wall, used with many louver styles, or even vented through an existing window frame with no construction required.

An electronically controlled louver with an auto-swing function distributes airflow comfortably and uniformly. Wall Mounted pro units are ideal for any area with free wall space. The onboard touch controller simplifies use and installation. AIO Wall Mounted Pro is available with an optional ERV module. The extremely powerful exhaust fan with 0.45″ WC enables flexibility in venting and higher efficiency with better performance than the standard Wall Mounted unit.

Request a Quote

  • Compact unit
  • Easy to install
  • Paintable sleek cabinet
  • Electronically controlled air louver
  • Always-on back-lit LED dims after 15 seconds of inactivity
  • Auto-restart
  • Washable filters

  • 900/1,800W electric heat
  • Optional ERV module
  • 115V or 230V
  • Hardwire or LCDI cord
  • R32

  • Cool, heat, dehumidify, and auto
  • Selectable fan speeds, low, med, high, and auto
  • Fresh air ERV – field configurable amount of fresh air (with optional ERV Module)

  • High wall
  • Low wall
  • Sidewall with adapter
  • Multiple adapter options

  • Dual 8-inch external vents
  • Available 0.45″ WC for external ducting, adapters, and louvers

  • Onboard touch controller

  • WiFi app for Android and iPhone
  • Wall Mounted Advanced touchscreen with a 7-day program
  • Wall Mounted Basic touch controller
  • Third party thermostat interface
  • BACnet/Modbus interface

Installation Made Easy

Watch the installation process step by step for easy setup and mounting. This video ensures quick and hassle-free installation.

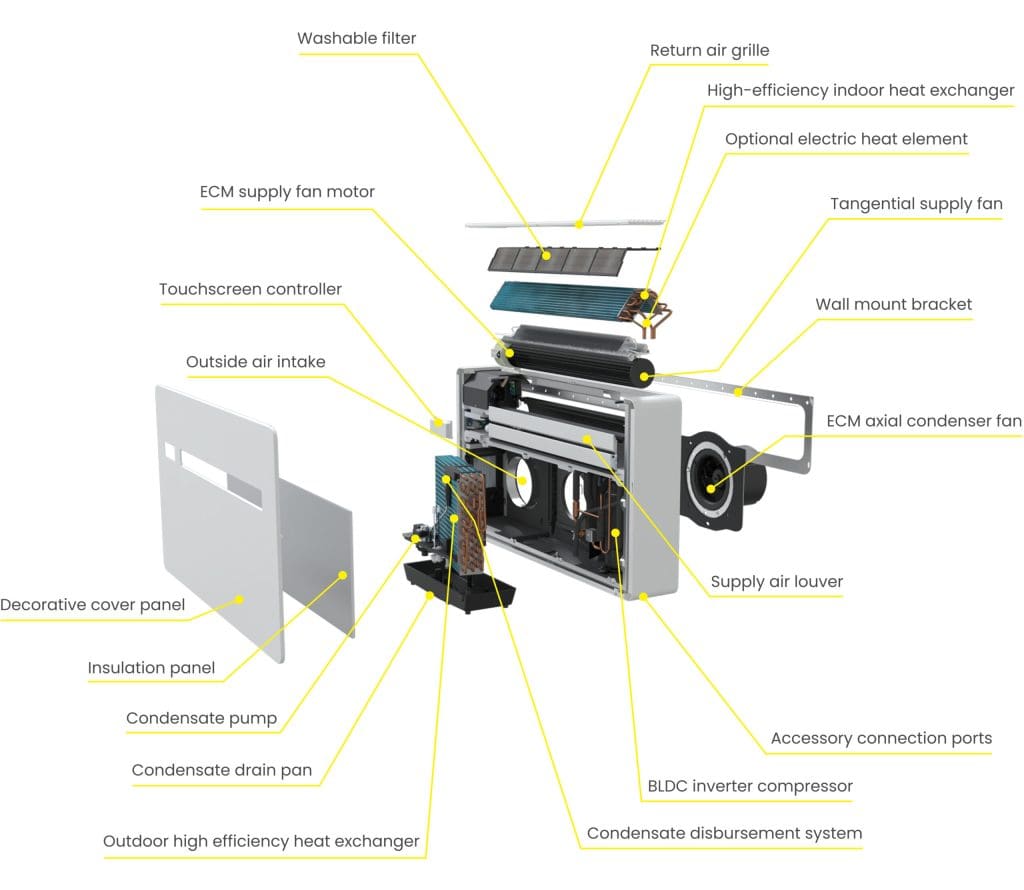

What’s Inside

Discover the advanced components engineered to deliver reliable performance, energy efficiency, and consistent comfort in every installation.

Technical Specifications

Explore key technical specifications for performance and efficiency. Clear details for quick system understanding.

View Resources on Innova.co

Advanced Airflow System

AIO Wall Mounted Pro is extraordinarily flexible in how it can externally vent. A host of adapters are available that enable AIO Wall Mounted Pro to be installed in many scenarios, including on glass curtain walls with linear louvers, integrated window, and louver assemblies, or even with no construction using a windowsill adapter.

  • Outside Air
  • Recirculate Air
A
Outside Air Intake

Fresh outdoor air enters through an 8-inch (adaptable to 6-inch) intake connection, compatible with approved or custom louvers that meet installation requirements.

B
Outside Air Exhaust

Stale indoor air is expelled through an 8-inch (adaptable to 6-inch) exhaust connection, ensuring reliable ventilation with approved or custom louvers.

C
Return Air Flow

Indoor air is drawn back into the unit through the integrated top return air grille, supporting efficient air circulation and system performance.

D
Supply Air Distribution

Conditioned air is delivered through an electronically controlled louver with adjustable angles and auto-oscillation for even, comfortable airflow.

Proven. Certified.
Built for Canadian Climates.

Innova AIO heat pumps combine independently tested performance, recognized certifications, and years of proven operation in demanding Canadian climates.

Choose equipment that has been tested, certified, and proven through harsh Canadian winters.
