Why Choose Wall Mounted

AIO Wall Mounted units are slim and sleek. Wall Mounted units can be mounted high or low with a factory supplied bracket, making installation quick and simple. An electronically controlled louver with an auto-swing function distributes airflow comfortably and uniformly.

Wall Mounted units are ideal for any area with free wall space. The onboard touch controller simplifies use and installation. AIO Wall Mounted units are available with an optional ERV module. Special adapters enable the unit to be installed perpendicular to an outside wall.

Request a Quote

  • Compact unit
  • Easy to install
  • Paintable sleek cabinet
  • Electronically controlled air louver
  • Always-on back-lit LED dims after 15 seconds of inactivity
  • Auto-restart
  • Washable filters

  • 900/1,800W electric heat
  • Optional ERV module
  • 115V or 230V
  • Hardwire or LCDI cord
  • R32

  • Cool, heat, dehumidify, and auto
  • Selectable fan speeds, low, med, high, and auto
  • Fresh air ERV – field configurable amount of fresh air (with optional ERV Module)

  • High wall
  • Low wall
  • Sidewall with adapter

  • Dual 8-inch external vents
  • Available 0.25″ WC for louvers

  • Onboard touch controller

  • WiFi app for Android and iPhone
  • Wall Mounted Advanced touchscreen with a 7-day program
  • Wall Mounted Basic touch controller
  • Third party thermostat interface
  • BACnet/Modbus interface

Installation Made Easy

Our expert installation ensures every unit is fitted quickly and accurately with minimal disruption, delivering reliable performance and lasting comfort.

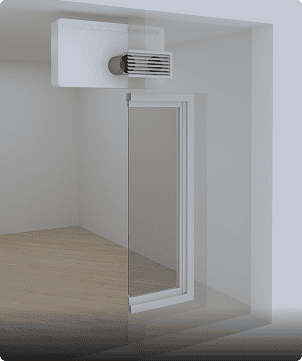

High-Wall Install

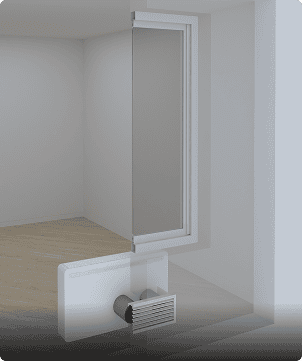

Low-Wall Install

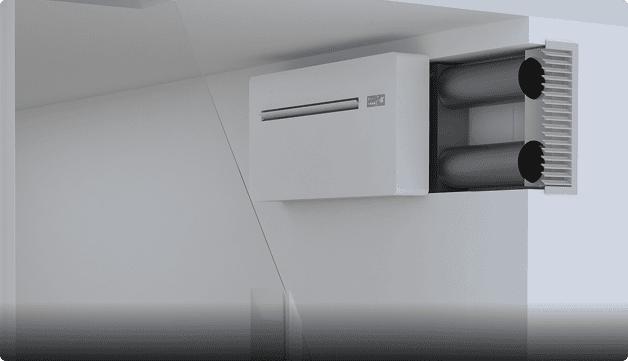

Sidewall Install

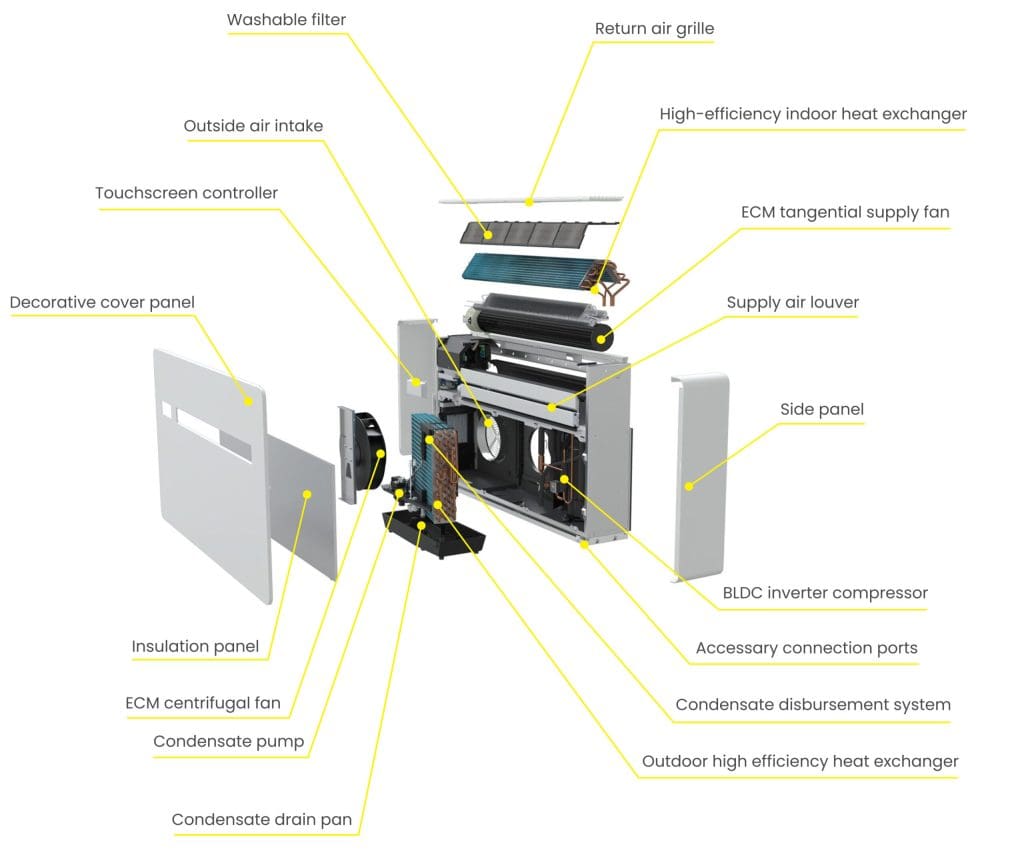

What’s Inside

Discover the advanced components engineered to deliver reliable performance, energy efficiency, and consistent comfort in every installation.

Technical Specifications

Explore key technical specifications for performance and efficiency. Clear details for quick system understanding.

View Resources on Innova.co

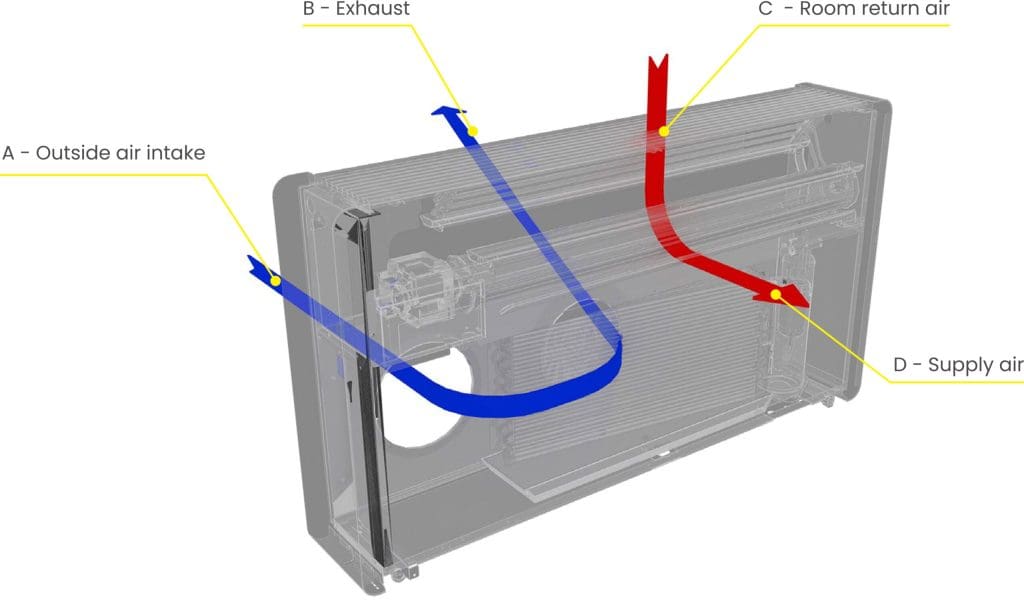

Advanced Airflow System

In addition to the typical twin external vents, AIO Wall Mounted can attach to a sidewall adapter enabling mounting on a wall perpendicular to the outside.

  • Outside Air
  • Recirculate Air
A
Outside Air Intake

Fresh outdoor air enters through an 8-inch (adaptable to 6-inch) intake connection, compatible with approved or custom louvers that meet installation requirements.

B
Outside Air Exhaust

Stale indoor air is expelled through an 8-inch (adaptable to 6-inch) exhaust connection, ensuring reliable ventilation with approved or custom louvers.

C
Return Air Flow

Indoor air is drawn back into the unit through the integrated top return air grille, supporting efficient air circulation and system performance.

D
Supply Air Distribution

Conditioned air is delivered through an electronically controlled louver with adjustable angles and auto-oscillation for even, comfortable airflow.

Proven. Certified.
Built for Canadian Climates.

Innova AIO heat pumps combine independently tested performance, recognized certifications, and years of proven operation in demanding Canadian climates.

Choose equipment that has been tested, certified, and proven through harsh Canadian winters.
