Why Choose Ceiling Suspended

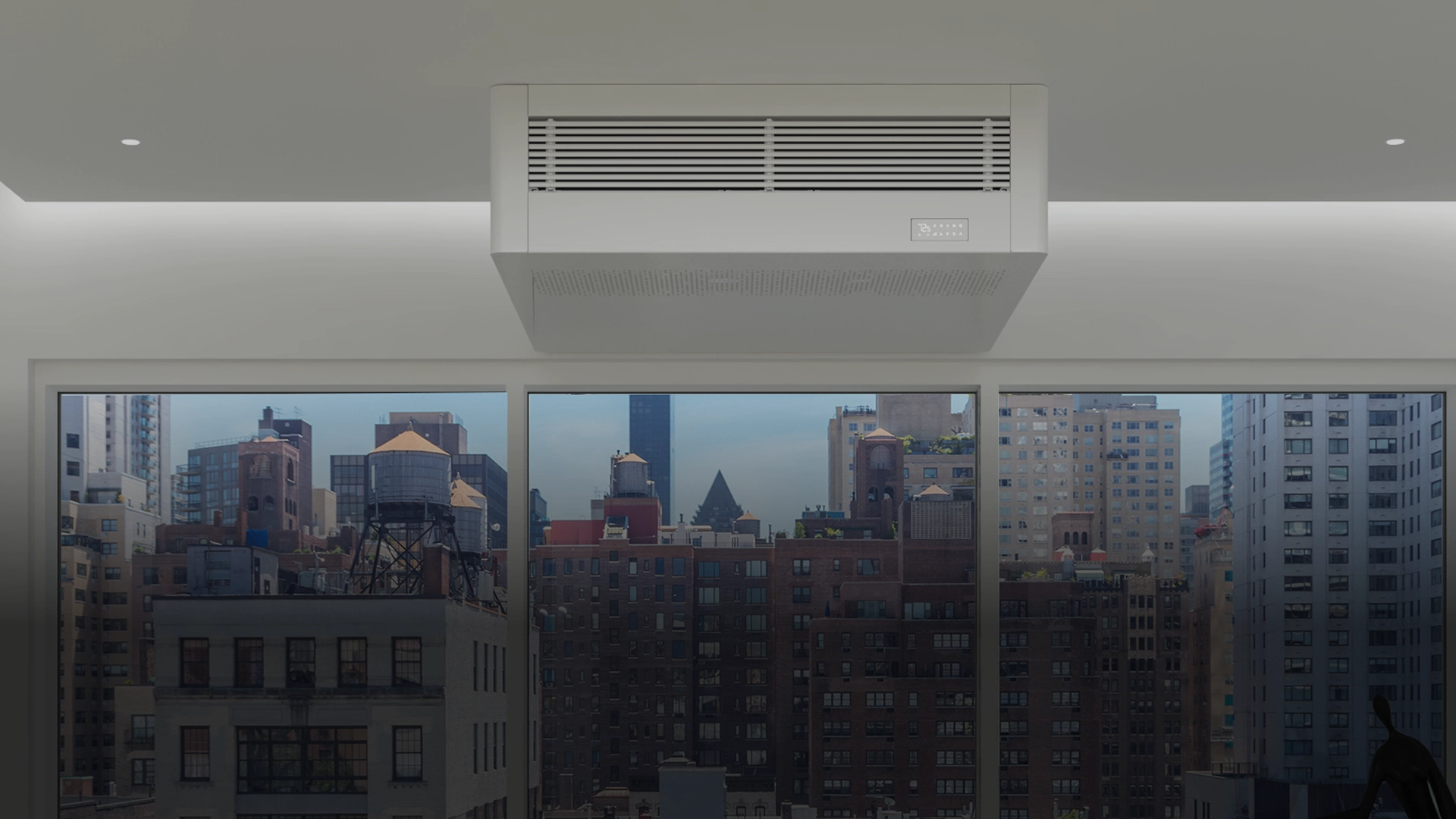

AIO Ceiling Suspended unit is hung from the ceiling unobtrusively. These units are ideal for retrofit applications where it is desirable to have the unit “out of reach.” Ceiling Suspended units are suitable for dormitories, budget rental apartments or hotels, or anywhere a ceiling-mounted unit is desired.

Ceiling Suspended units are available with or without the integrated ERV and can be vented directly outside or through ductwork.

Request a Quote

  • Compact unit
  • Easy to install
  • Paintable sleek cabinet
  • Electronically controlled air louver
  • Always-on back-lit LED dims after 15 seconds of inactivity
  • Auto-restart
  • Washable filters

  • Optional 0.9 or 1.8 kW electric heat
  • 115V or 230V
  • Hardwire or LCDI cord
  • R32

  • Cool, heat, dehumidify, and auto
  • Selectable fan speeds, low, med, high, and auto

  • Ceiling

  • Dual 8-inch external vents
  • Available 0.45″ WC for external ducting, adapters, and louvers

  • Onboard touch controller


  • WiFi app for Android and iPhoneWiFi app for Android and iPhone
  • Wall Mounted Advanced touchscreen with a 7-day program
  • Wall Mounted Basic touch controller
  • Third party thermostat interface
  • BACnet/Modbus interface

Installation Made Easy

Our installation process is quick and simple with minimal disruption, ensuring precise setup and reliable performance.

What’s Inside

Discover the advanced components engineered to deliver reliable performance, energy efficiency, and consistent comfort in every installation.

Technical Specifications

Explore key technical specifications for performance and efficiency. Clear details for quick system understanding.

View Resources on Innova.co

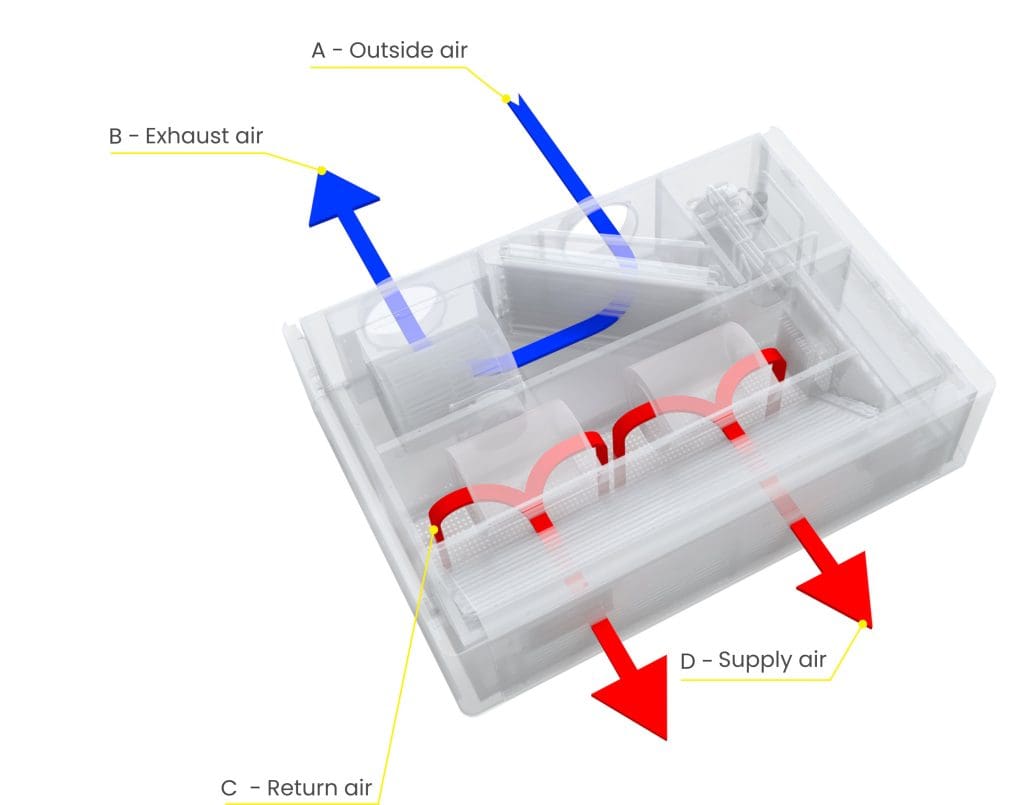

Advanced Airflow System

AIO Ceiling Suspended is flexible in many ways. It can be fully ducted or used with minimal or no ducting. This flexibility enables AIO Ceiling Suspended to be placed anywhere in a dwelling without restrictions.

  • Outside Air
  • Recirculate Air
A
Outside Air Intake

The single 6” round outside air intake connection provides air for the condenser portion. This can be ducted with up 0.45” WC external static pressure (com-bined between intake and exhaust).

B
Outside Air Exhaust

Warm condenser air is safely expelled outside through the exhaust connection for optimal system efficiency.

C
Return Air Flow

Room air is returned through the integrated bottom grille, ensuring continuous circulation and improved indoor comfort.

D
Supply Air

Conditioned air is evenly distributed through the front louver, providing consistent airflow and enhanced comfort throughout the space.

Proven. Certified.
Built for Canadian Climates.

Innova AIO heat pumps combine independently tested performance, recognized certifications, and years of proven operation in demanding Canadian climates.

Choose equipment that has been tested, certified, and proven through harsh Canadian winters.
