Why Choose Ceiling Suspended w/ERV

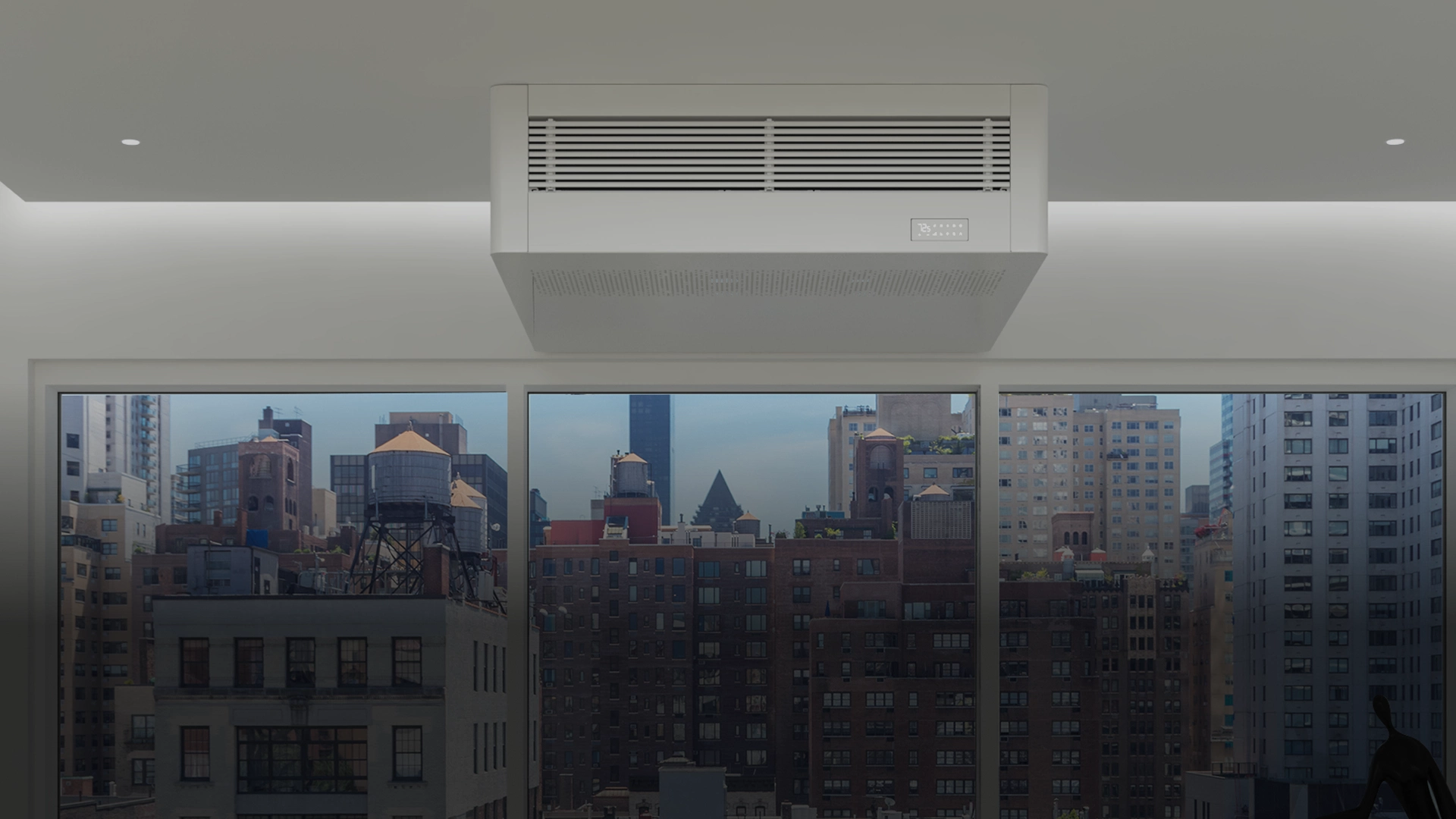

AIO Ceiling Suspended unit is hung from the ceiling unobtrusively. These units are ideal for retrofit applications where it is desirable to have the unit “out of reach.” Ceiling Suspended units are suitable for dormitories, budget rental apartments or hotels, or anywhere a ceiling-mounted unit is desired.

Ceiling Suspended units are available with or without the integrated ERV and can be vented directly outside or through ductwork.

Request a Quote

  • Compact unit
  • Easy to install
  • Paintable sleek cabinet
  • Electronically controlled air louver
  • Always-on back-lit LED dims after 15 seconds of inactivity
  • Auto-restart
  • Washable filters
  • Preheater for extreme cold climates

  • Optional 0.9 or 1.8 kW electric heat
  • With ERV
  • 115V or 230V
  • Hardwire or LCDI cord
  • R32

  • Cool, heat, dehumidify, and auto
  • Selectable fan speeds, low, med, high, and auto
  • Fresh air ERV – field configurable amount of fresh air

  • Ceiling

  • Dual 8-inch external vents
  • Available 0.45″ WC for external ducting, adapters, and louvers

  • Onboard touch controller


  • WiFi app for Android and iPhoneWiFi app for Android and iPhone
  • Wall Mounted Advanced touchscreen with a 7-day program
  • Wall Mounted Basic touch controller
  • Third party thermostat interface
  • BACnet/Modbus interface

Installation Made Easy

Our installation process is quick and simple with minimal disruption, ensuring precise setup and reliable performance.

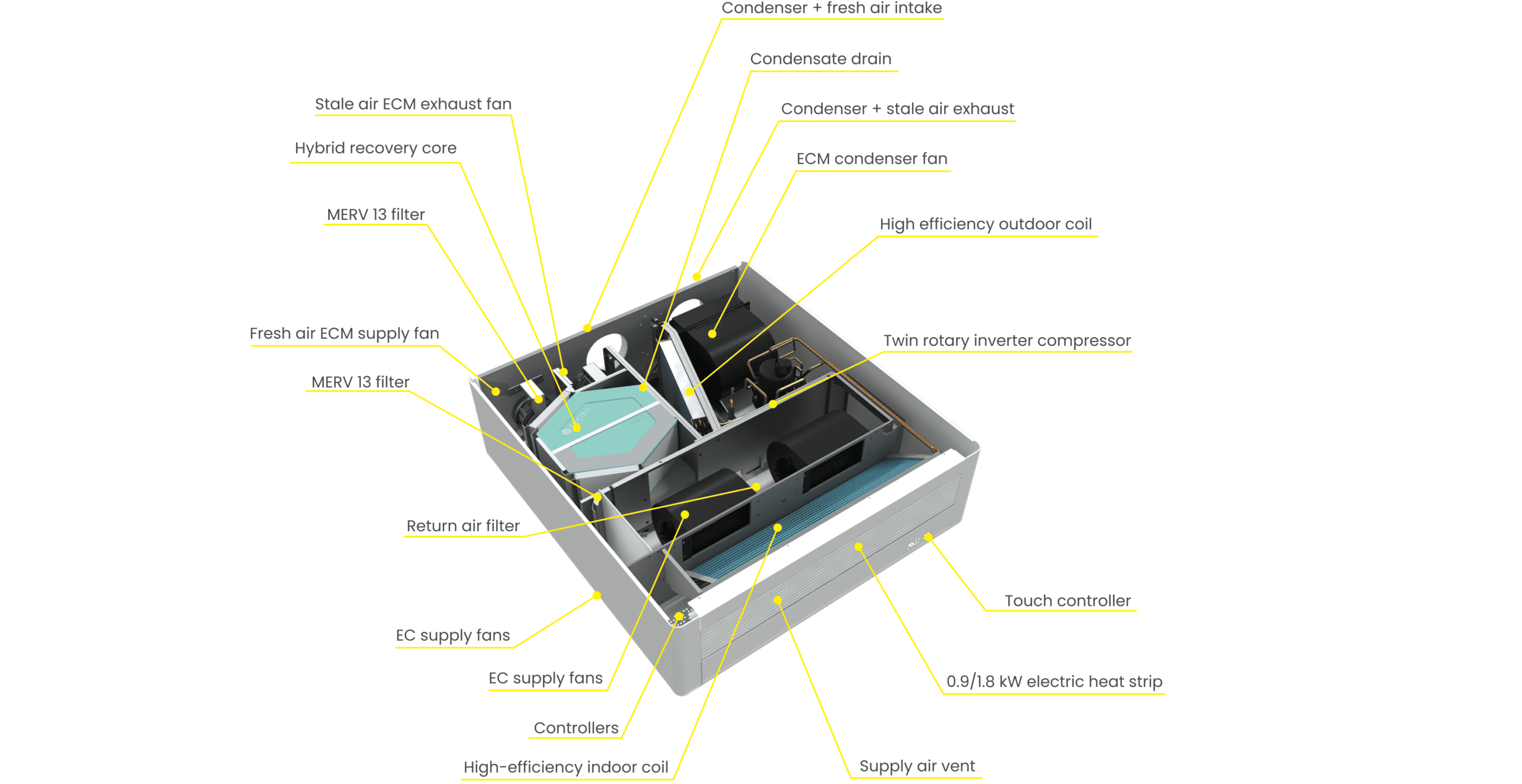

What’s Inside

Discover the advanced components engineered to deliver reliable performance, energy efficiency, and consistent comfort in every installation.

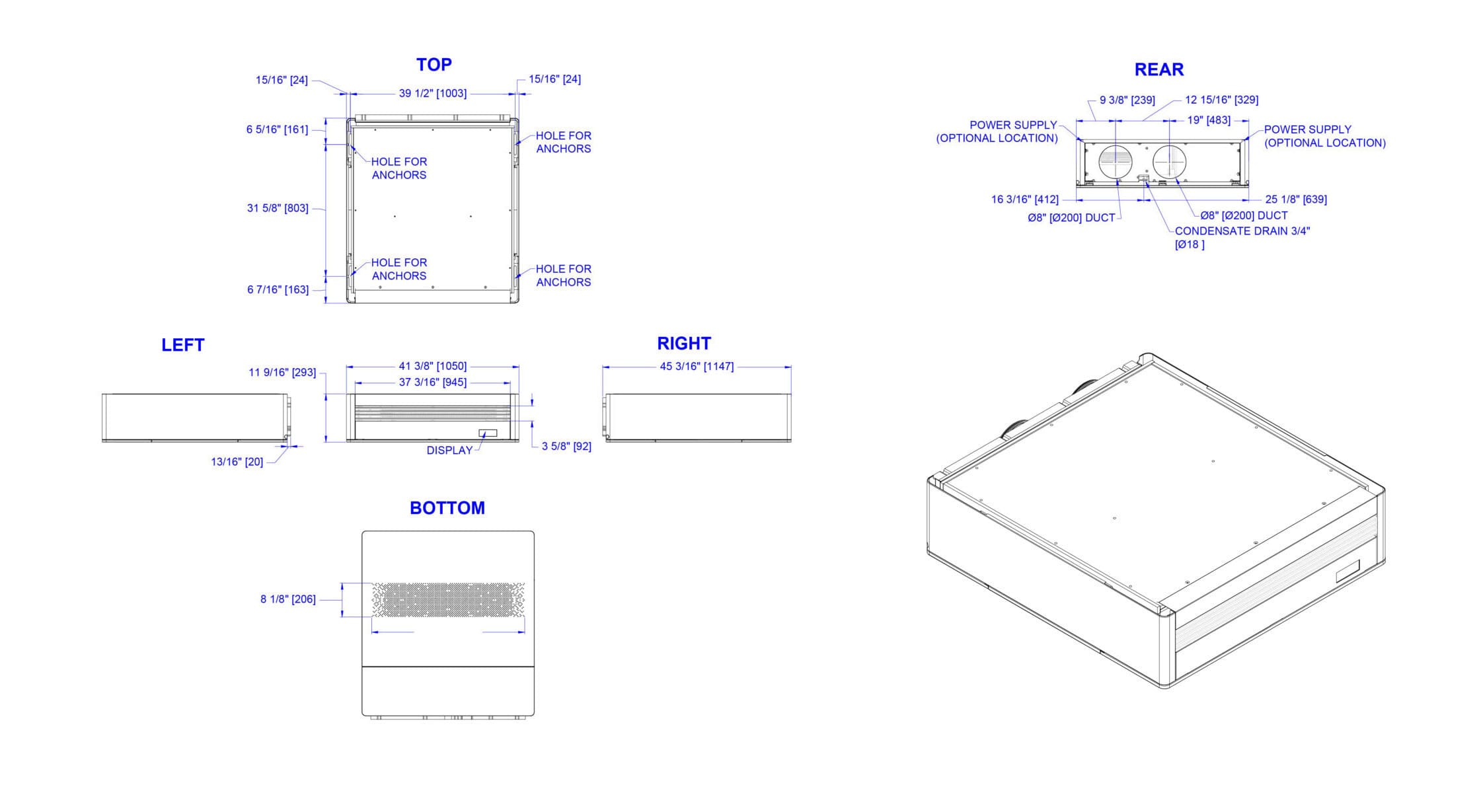

Technical Dimensions

Detailed product dimensions and layout for accurate planning and installation.

Technical Specifications

Explore key technical specifications for performance and efficiency. Clear details for quick system understanding.

View Resources on Innova.co

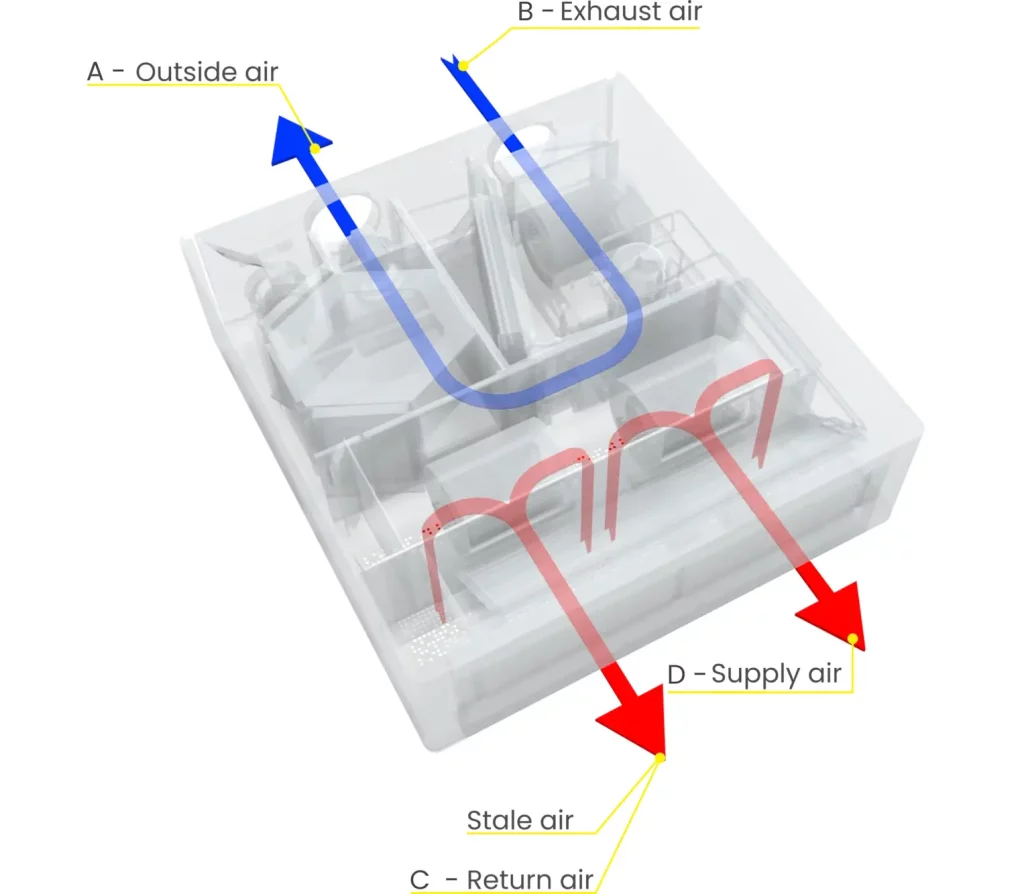

Advanced Airflow System

AIO Ceiling Suspended is flexible in many ways. It can be fully ducted or used with minimal or no ducting. This flexibility enables AIO Ceiling Suspended to be placed anywhere in a dwelling without restrictions.

  • Outside Air
  • Recirculate Air
A
Outside Air Intake

The single 6” round outside air intake connection provides air for the condenser portion. This can be ducted with up 0.45” WC external static pressure (combined between intake and exhaust).

B
Outside Air Exhaust

The single 6” round outside air exhaust connection is for the condenser portion. This can be ducted with up 0.45” WC external static pressure (combined between intake and exhaust).

C
Return Air Flow

The room is returned into the unit through the integrated return air grille on the bottom of the unit.

D
Supply Air

The supply air is through the front fixed louver.

Proven. Certified.
Built for Canadian Climates.

Innova AIO heat pumps combine independently tested performance, recognized certifications, and years of proven operation in demanding Canadian climates.

Choose equipment that has been tested, certified, and proven through harsh Canadian winters.
