Why Choose NextGen PTHP

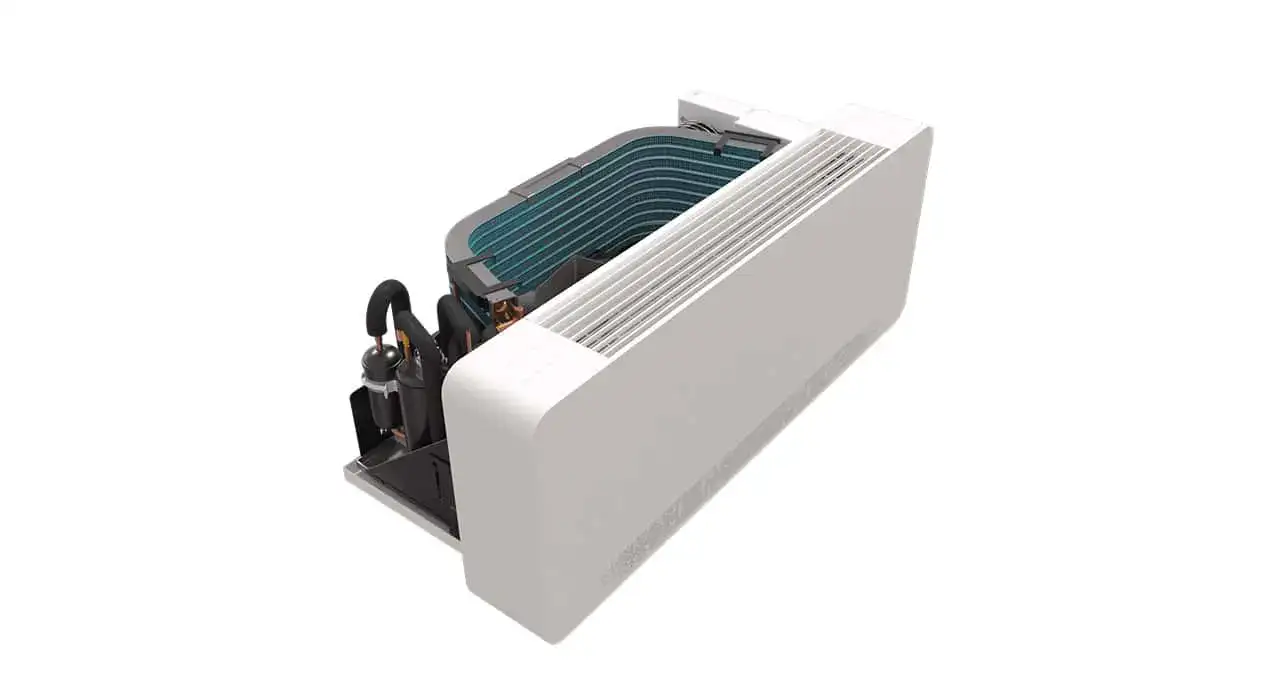

The NextGen PTHP fits standard PTAC wall sleeves, making it a direct replacement for existing units and a practical option for new construction designed around PTAC openings. It maintains the familiar PTAC/PTHP design while incorporating updated engineering and controls.

Compared to conventional PTACs, the NextGen PTHP offers a streamlined design, quieter operation, improved air sealing, and high energy efficiency driven by a twin-rotary BLDC inverter compressor with integrated energy recovery ventilation (ERV). The result is efficient, reliable heating and cooling in a modernized in-room unit.

Request a Quote

  • Quiet operation (27 dBA)
  • Compact, sleek, slim design
  • Durable all-metal paintable case
  • Option for washable filters or MERV 13 rated filters for room air
  • Accessible MERV 13 filters for outside-air
  • Auto-restart feature
  • Maintains uniform, consistent temperatures
  • Backed by a 10-year limited warranty

  • 1,800W electric heating capability staged as 900W + 900W
  • Features an optional condensate disbursement system for heating
  • Optional sleeve includes a ThermaSleeve insulator for enhanced insulation
  • AirSync technology for balanced airflow
  • Compatible with both 115V and 230V power sources
  • Offers hardwire or LCDI cord options
  • Choice of refrigerants: R-32

  • Offers cooling, heating, dehumidification, and auto modes
  • Provides up to 50 CFM of fresh air
  • Selectable fan speeds: low, medium, high, and auto
  • Programmable outside-air intake
  • Includes a connection for bathroom exhaust
  • Efficient condensate disbursement system for cooling
  • Features sound and thermal barriers
  • Easy installation—compatible with any standard PTAC sleeve
  • Wide range of capacity in a single unit

  • Features a twin-rotary BLDC inverter compressor
  • Integrated ERV for fresh air circulation
  • Utilizes Recovery+ technology, leveraging exhaust air to enhance condenser performance for heating and cooling
  • Equipped with high-performance independent ECM fans for outside-air supply and room air exhaust
  • Utilizes high-performance, extra-large C and V shaped heat exchangers
  • Incorporates a unique high-efficiency, high performance backward ECM centrifugal condenser fan
  • Includes a high-performance ECM tangential fan for room supply-air
  • Designed with a sound and thermal barrier for enhanced comfort
  • Optional self-cleaning coils for minimal maintenance.

  • Onboard touch controller for diagnostics and programing (on bottom of the unit)


  • WiFi app for Android and iPhoneWiFi app for Android and iPhone
  • Wall Mounted Advanced touchscreen with a 7-day program
  • Wall Mounted Basic touch controller
  • Third party thermostat interface
  • BACnet/Modbus interface
  • Central control system

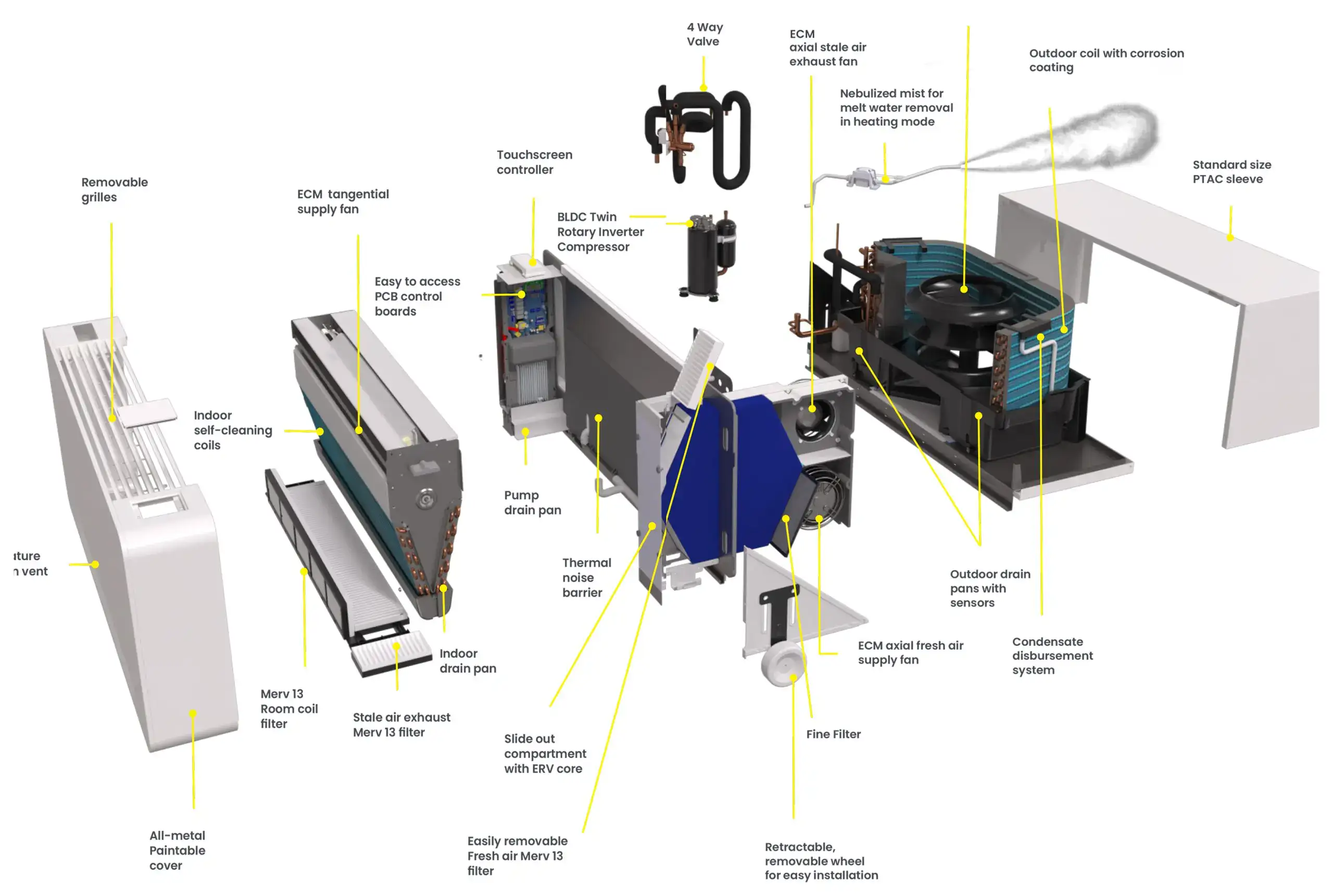

What’s Inside

Discover the advanced components engineered to deliver reliable performance, energy efficiency, and consistent comfort in every installation.

Technical Specifications

Explore key technical specifications for performance and efficiency. Clear details for quick system understanding.

View Resources on Innova.co

Proven. Certified.
Built for Canadian Climates.

Innova AIO heat pumps combine independently tested performance, recognized certifications, and years of proven operation in demanding Canadian climates.

Choose equipment that has been tested, certified, and proven through harsh Canadian winters.
