Why Choose Vertical Stack XL

AIO Wall Mounted units are slim and sleek. Wall Mounted units can be mounted high or low with a factory supplied bracket, making installation quick and simple. An electronically controlled louver with an auto-swing function distributes airflow comfortably and uniformly. Wall Mounted units are ideal for any area with free wall space.

The onboard touch controller simplifies use and installation. AIO Wall Mounted units are available with an optional ERV module. Special adapters enable the unit to be installed perpendicular to an outside wall.

Request a Quote

  • Compact unit
  • Easy to install
  • High ESP for internal and external ducting
  • Extraordinary flexible ducting
  • Bathroom exhaust connection
  • Auto-restart
  • Washable filters

  • Optional 900 or 1,800W electric heat
  • With With or without ERV
  • 230V
  • Hardwire or LCDI cord
  • R32
  • MERV 13 filtration on return air

  • Cool, heat, dehumidify, and auto
  • Selectable fan speeds, low, med, high, and auto
  • Fresh air ERV – field configurable amount of fresh air (with optional ERV Module)

  • Vertical

  • 22″ x 31″ external vent
  • Available 0.7″ WC for external ducting, adapters, and louvers
  • Available 0.6″ WC for internal ducting and louvers

  • Onboard touch controller for diagnostics and programming


  • WiFi app for Android and iPhoneWiFi app for Android and iPhone
  • Wall Mounted Advanced touchscreen with a 7-day program
  • Wall Mounted Basic touch controller
  • Third party thermostat interface
  • BACnet/Modbus interface

Extraordinarily Flexible Ducting

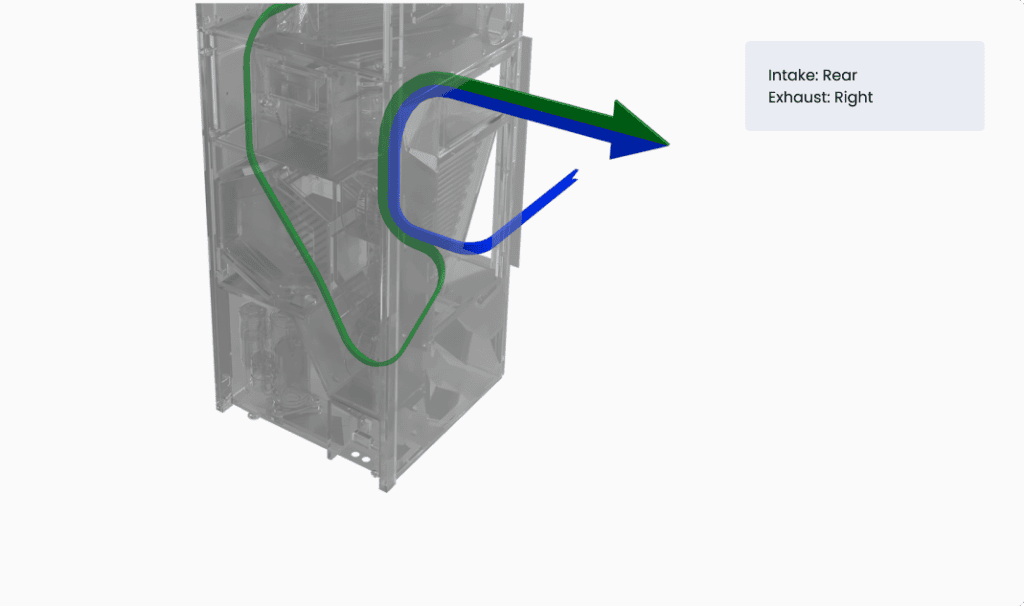

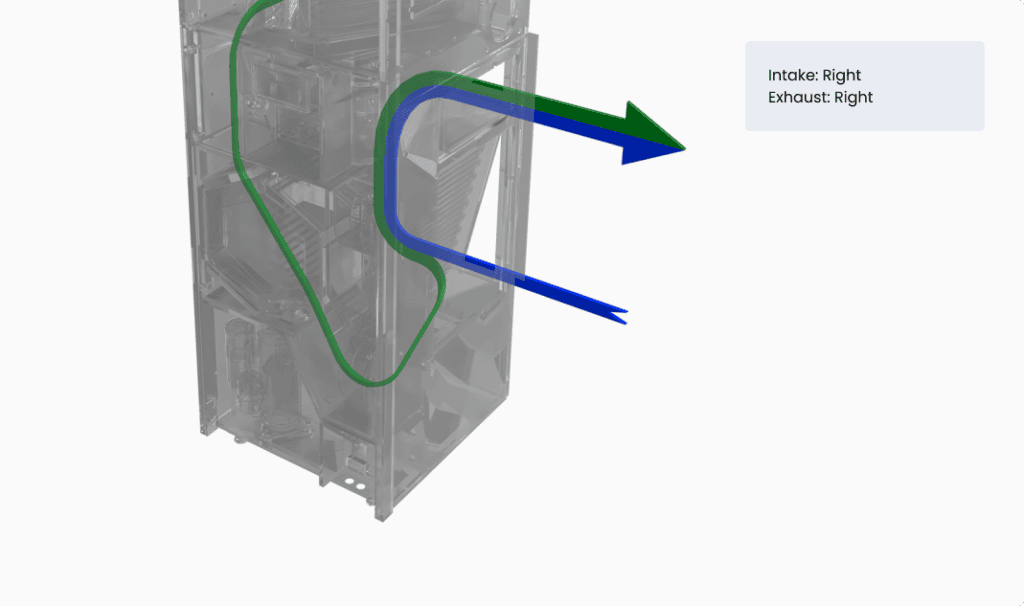

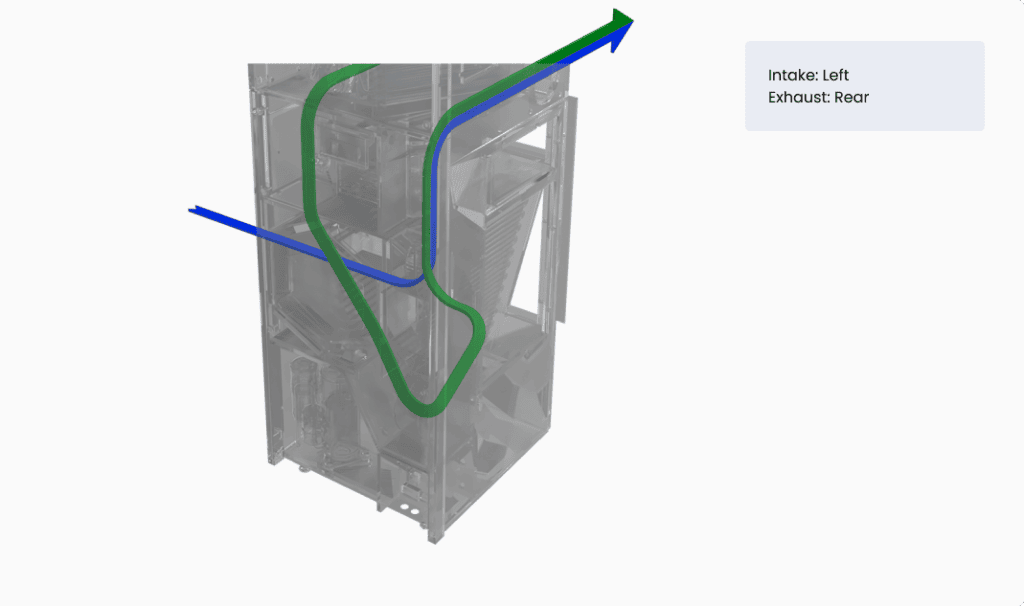

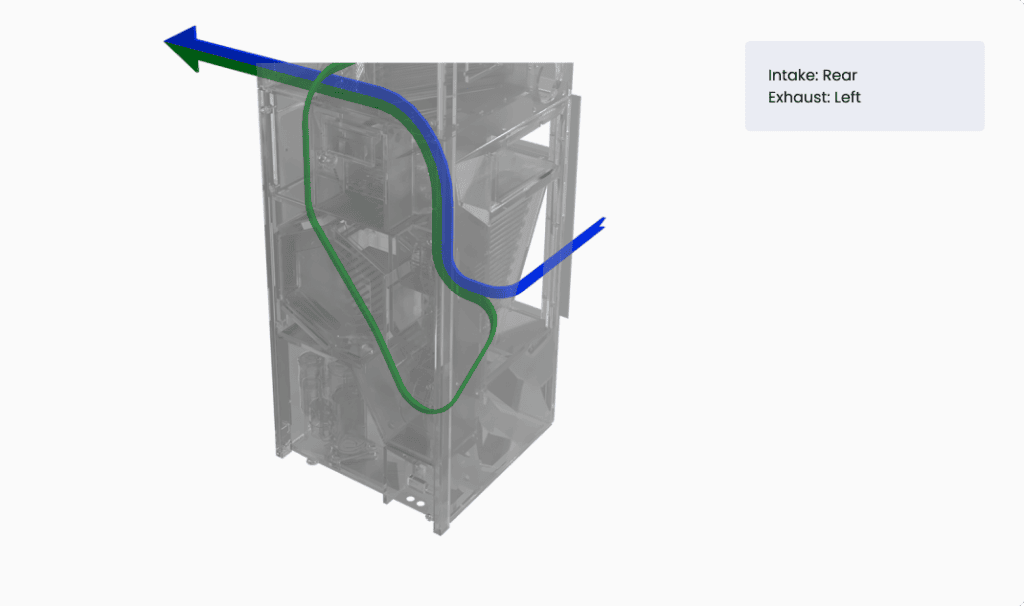

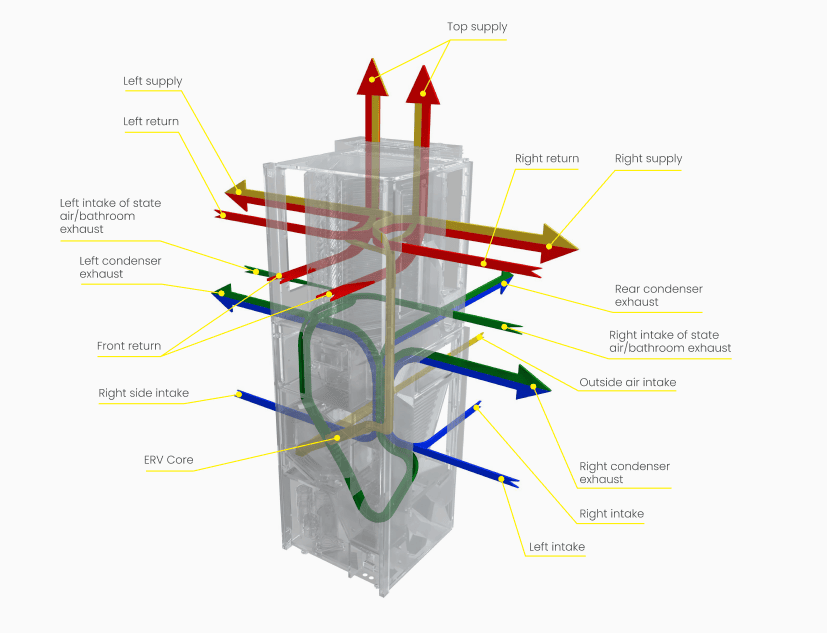

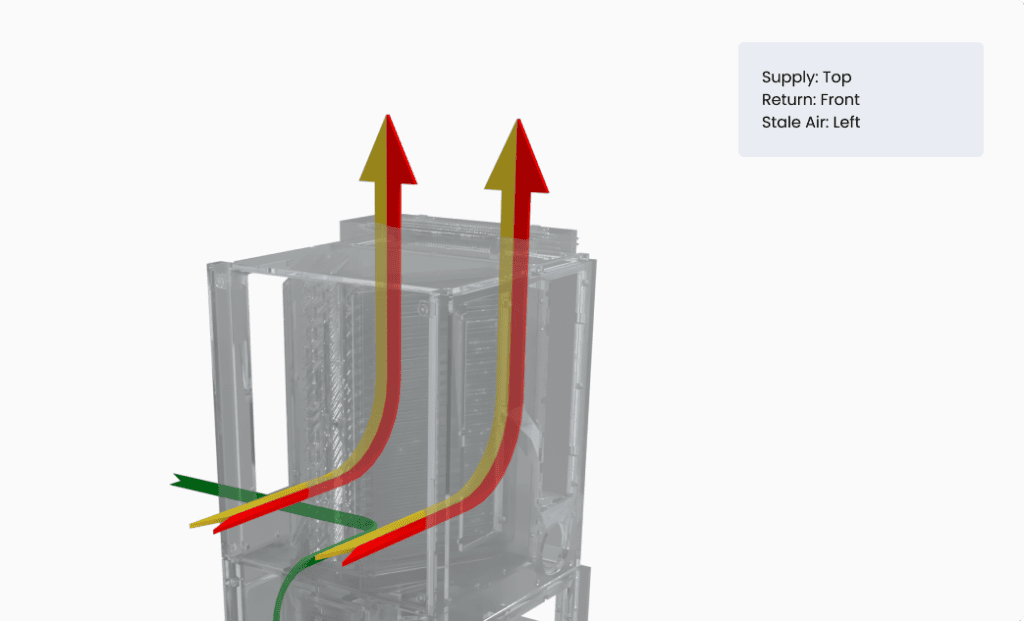

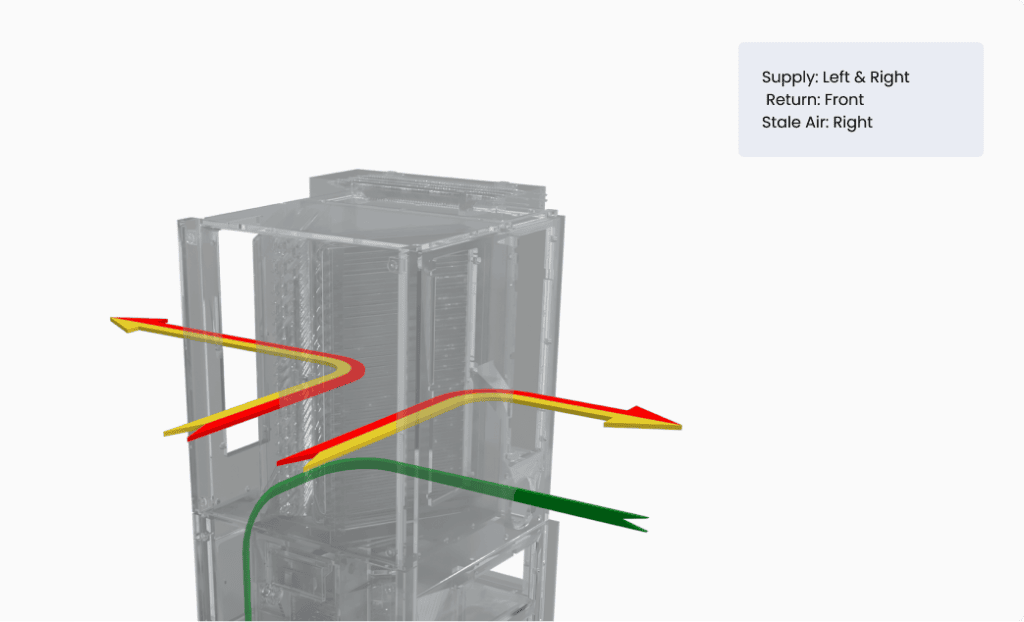

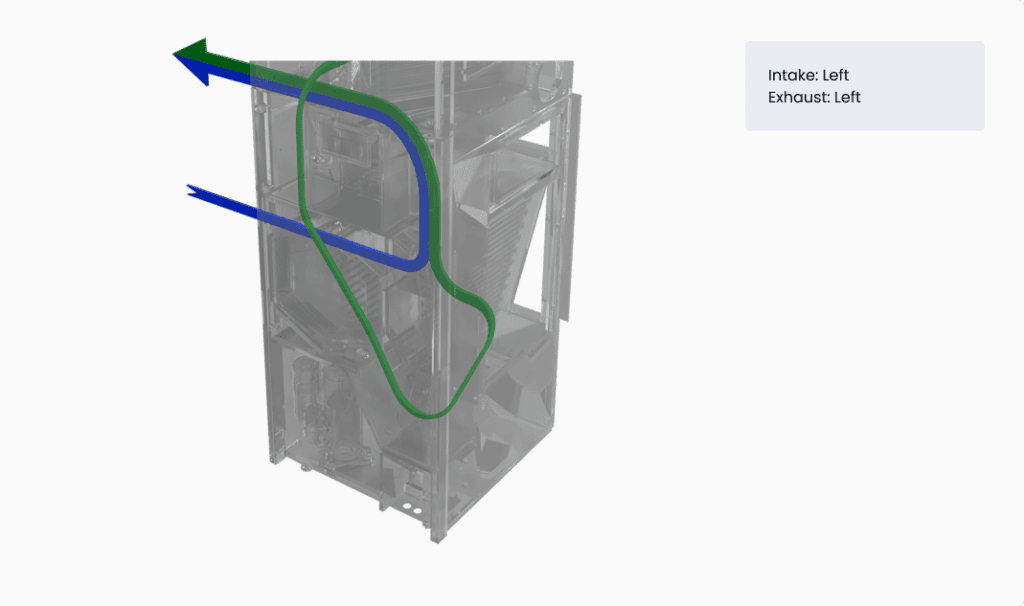

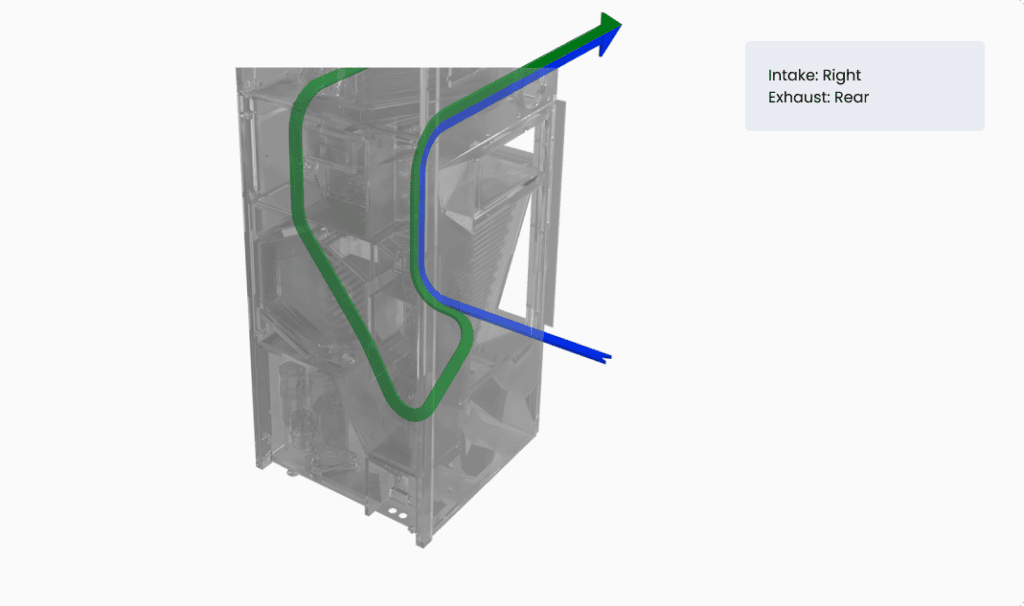

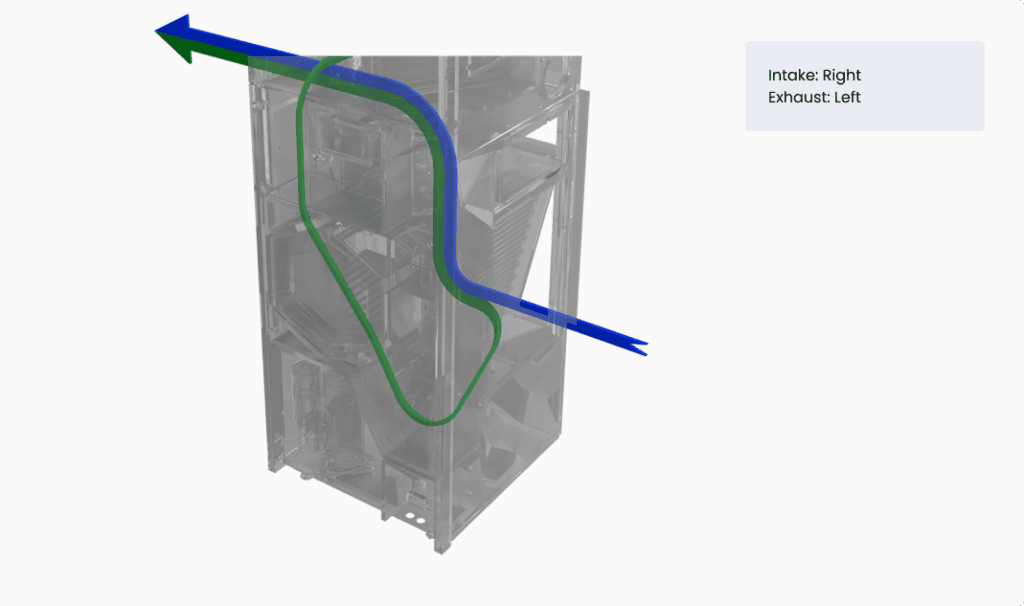

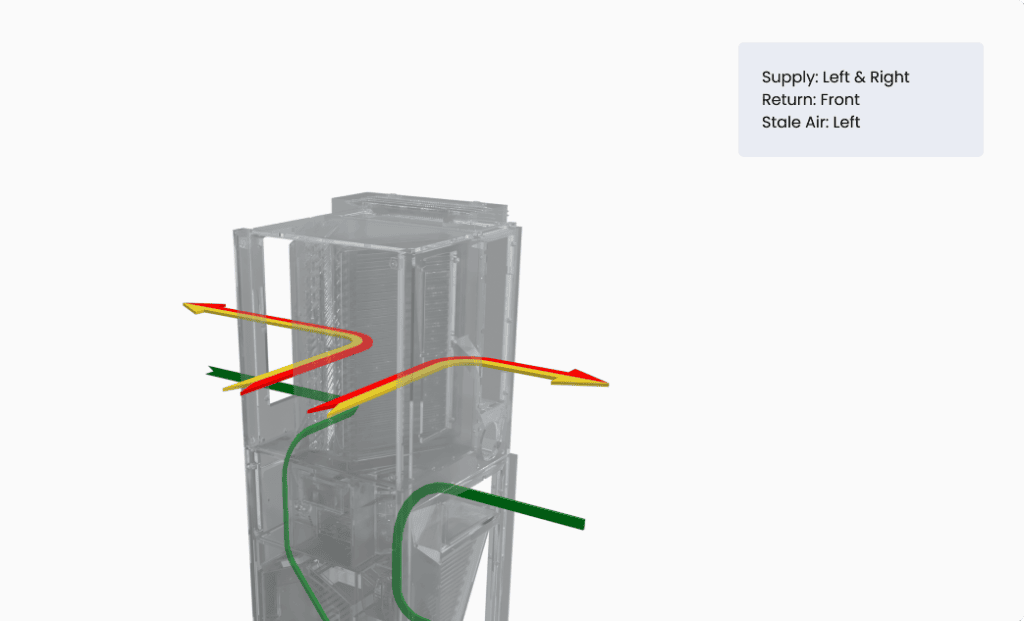

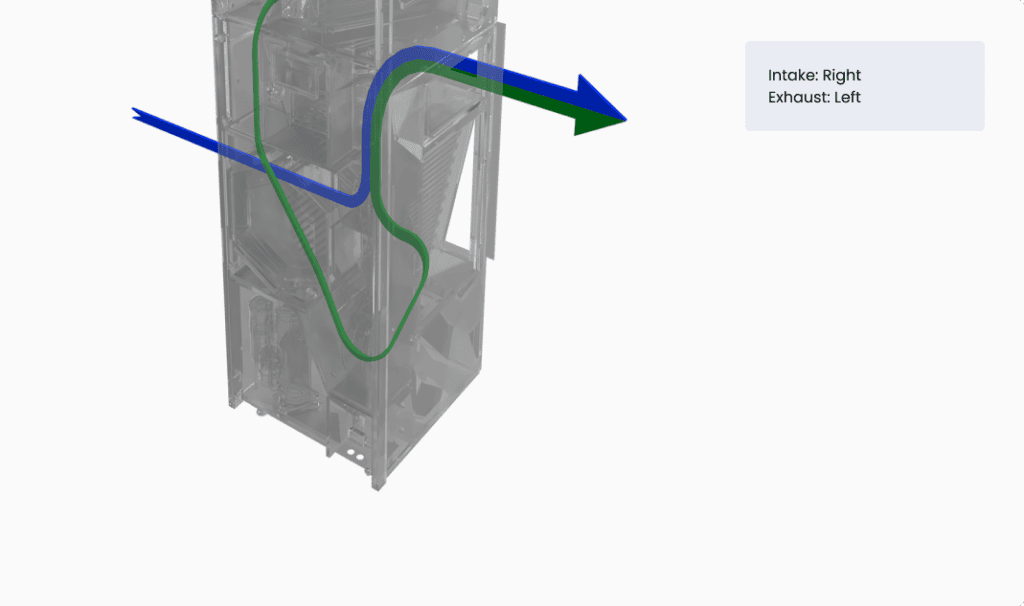

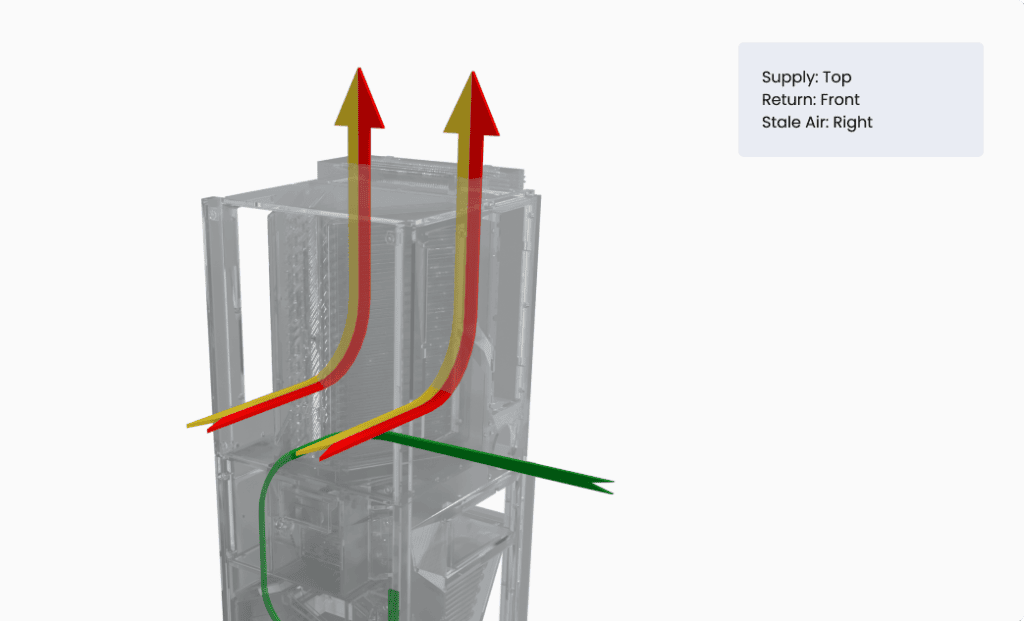

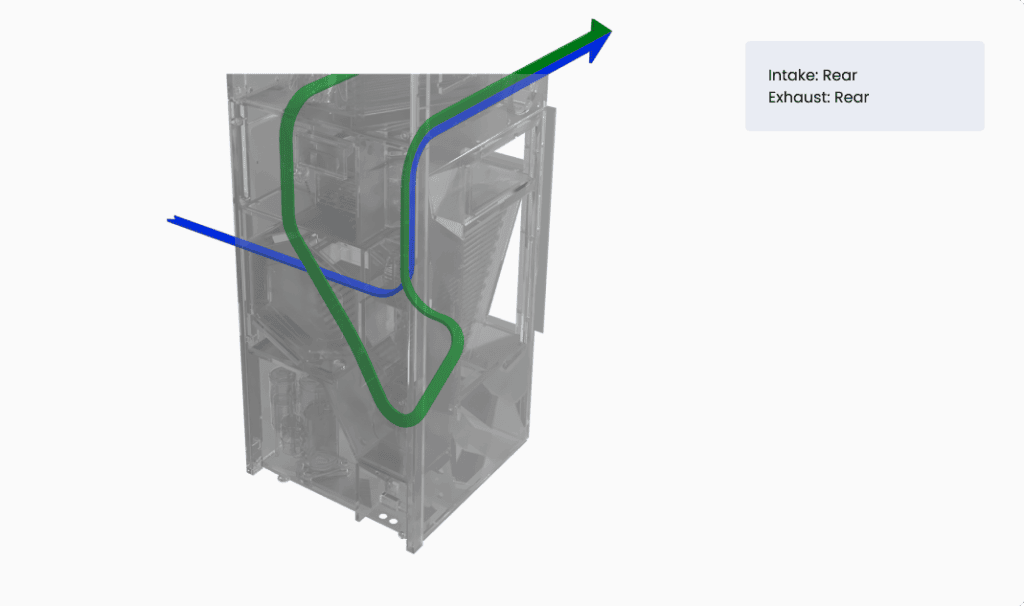

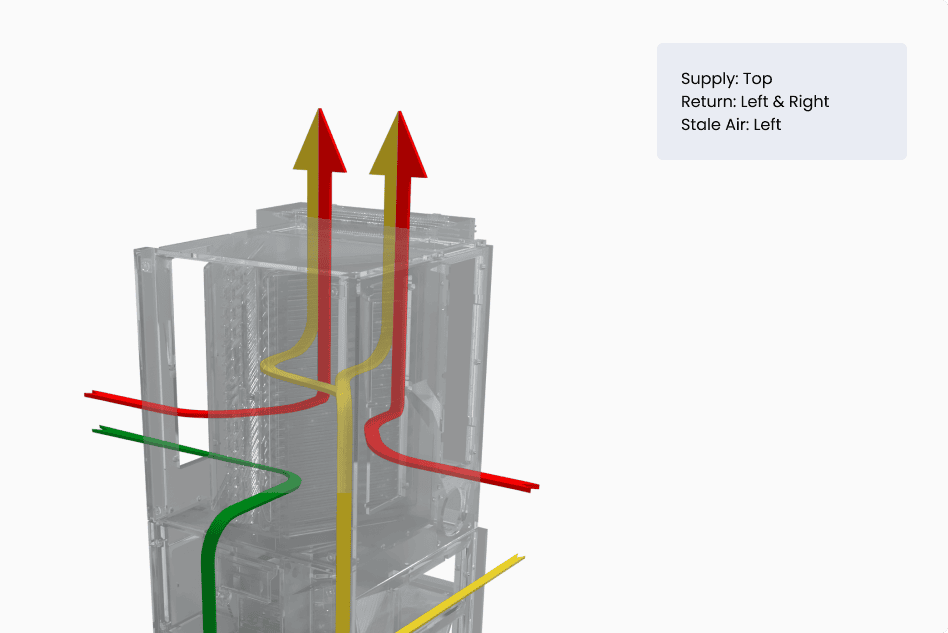

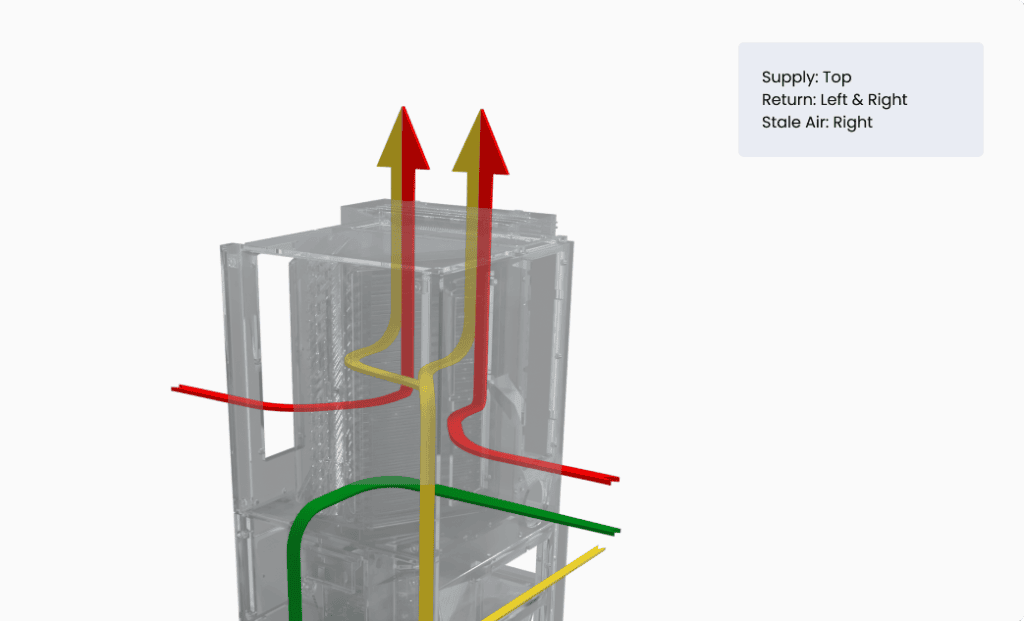

Model V’s powerful backward centrifugal ECM fan facilitates efficient condenser air movement through ductwork, enabling flexible placement within a room or apartment. Unlike traditional VTACs, it doesn’t require an outside wall. The design allows air supply from the top or both sides, with flexible condenser intake options (left, right, or rear). Flexible ducting choices with 0.7 in. W.C. make Model V versatile for installation without restrictions in any dwelling area.

Installation Made Easy

Our installation process is quick and simple with minimal disruption, ensuring precise setup and reliable performance.

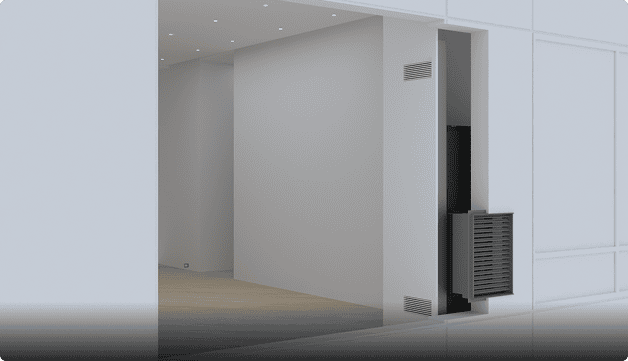

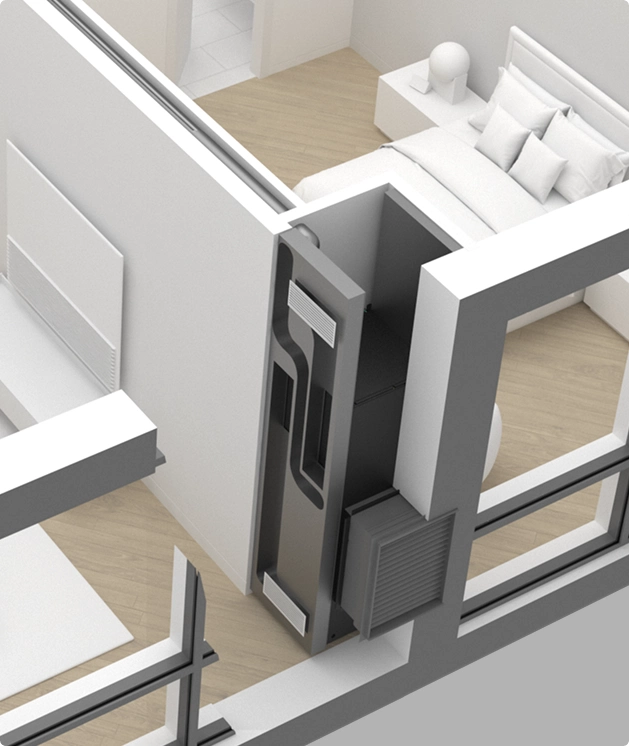

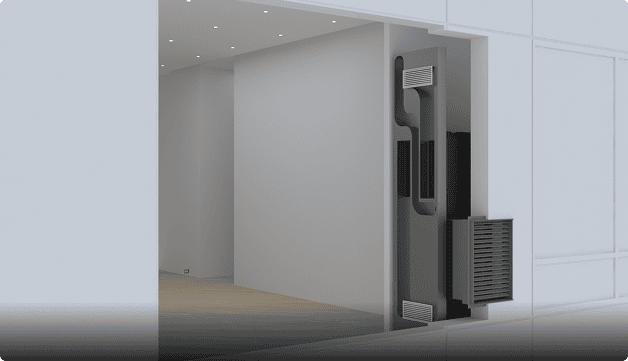

Supply upper wall – return lower on both sides of the unit
Shown with plenum adapter for simplified ducting

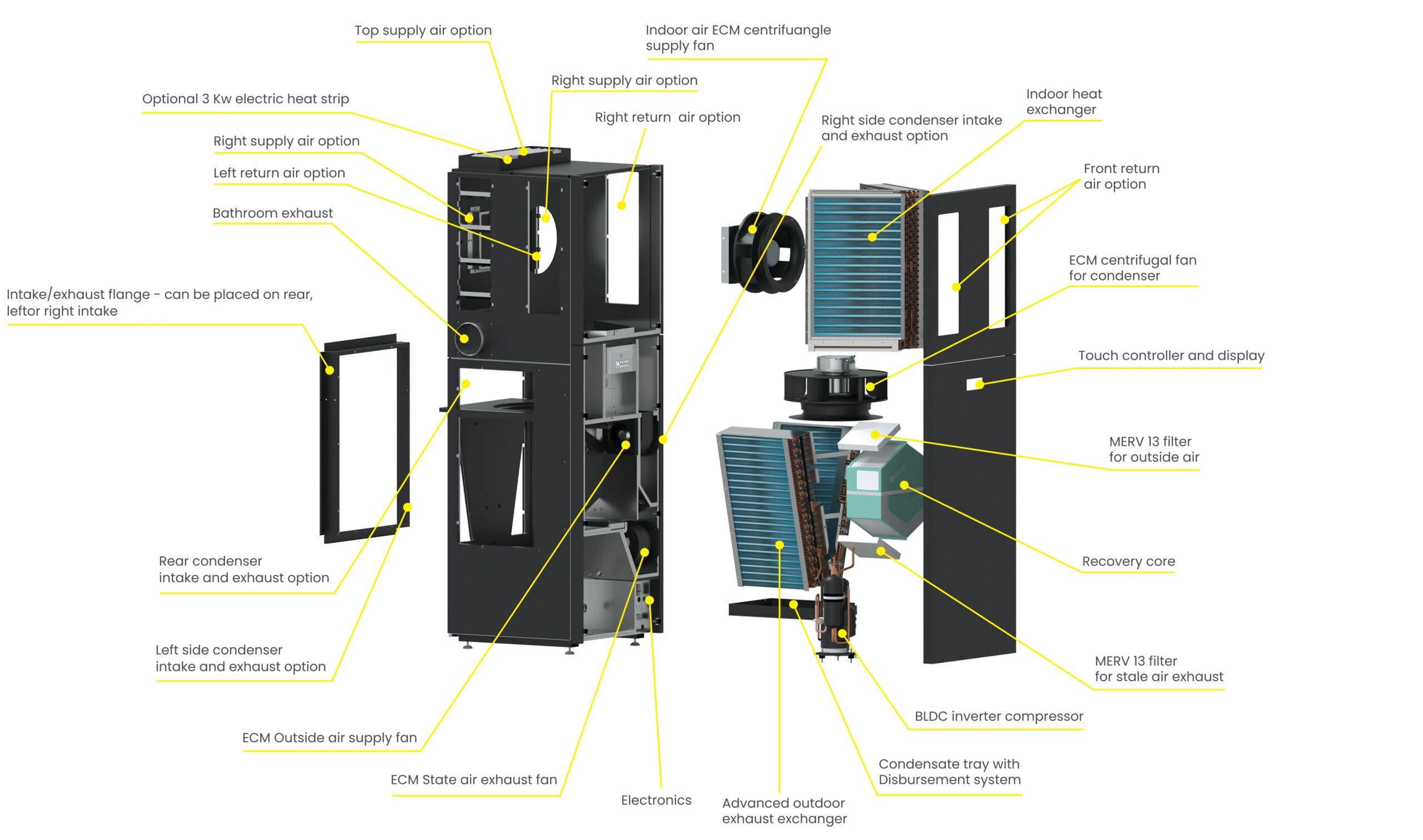

What’s Inside

Discover the advanced components engineered to deliver reliable performance, energy efficiency, and consistent comfort in every installation.

Technical Specifications

Explore key technical specifications for performance and efficiency. Clear details for quick system understanding.

View Resources on Innova.co

No Access Required

The versatile design of AIO makes the system extremely reliable and inexpensive to maintain. If a repair is needed, a single unit can be taken off-line without affecting the entire system. It’s possible to install AIO Vertical stack on the corridor wall of each apartment/hotel room so that all maintenance can be achieved from a common area – at any time, which means no maintenance personnel needs to enter the unit.

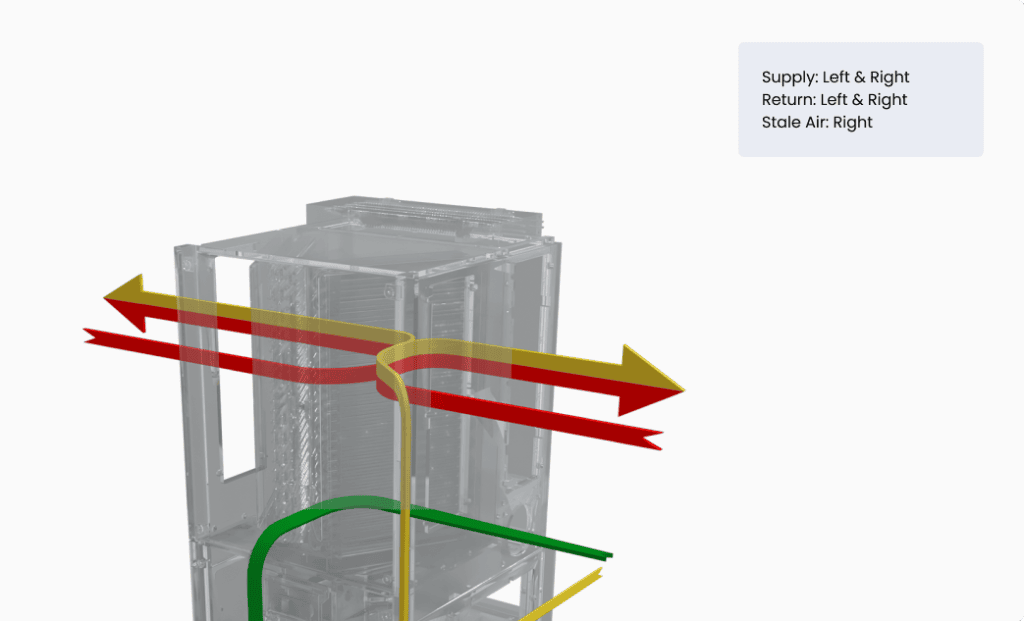

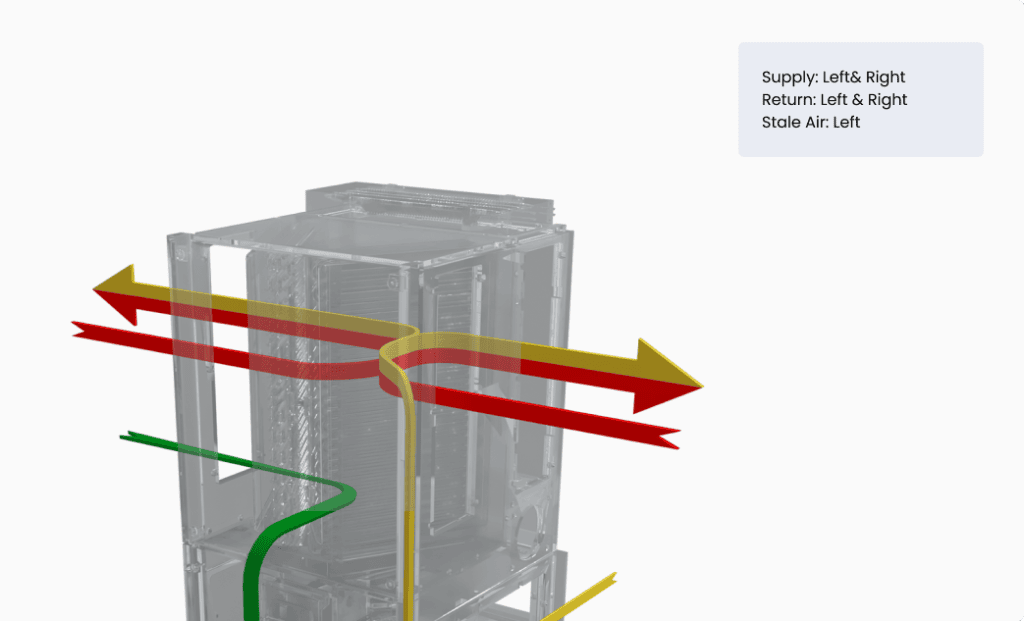

Advanced Airflow System

AIO Wall Mounted Pro is extraordinarily flexible in how it can externally vent. A host of adapters are available that enable AIO Wall Mounted Pro to be installed in many scenarios, including on glass curtain walls with linear louvers, integrated window, and louver assemblies, or even with no construction using a windowsill adapter.

  • Outside Air
  • Recirculate Air
  • Fresh Air Intake
  • Stale Air Exhaust

Proven. Certified.
Built for Canadian Climates.

Innova AIO heat pumps combine independently tested performance, recognized certifications, and years of proven operation in demanding Canadian climates.

Choose equipment that has been tested, certified, and proven through harsh Canadian winters.
